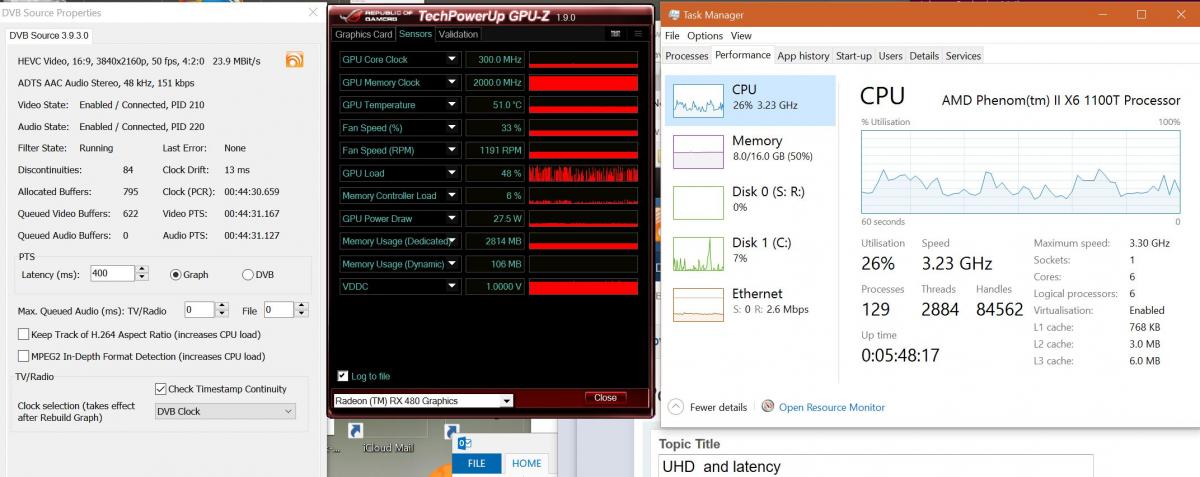

fxv1 Posted July 28, 2016 Share Posted July 28, 2016 Just a question which I am not sure has an answer. At the monent I am monitoring UHD Demo on Astra 2A (UK) and I get discontinuities. Not many and it does not happen that often, I get many 2 per minute. I have adjusted my dish using a meter and am on 94% signal on that channel. My question is this, does latency settings affect the discontinuities, I have tried with 250, 300, 350, 400 up to 600 and not sure it makes a difference for me. The other question is does SD, HD and UHD need different latency settings ? On the allocated buffers I see 795 allocted and Queued video buffers around the 420 mark. My CPU load is at 20% and GPU load flactuating between 5% and 80% Quote Link to comment
Clemens123 Posted July 29, 2016 Share Posted July 29, 2016 (edited) Are you using LAV decoders? Is DXVA2 (Native) activated and running? Which Video Renderer is activated? (if MadVR try Custom Video Renderer) And please upload your support.zip Edited July 29, 2016 by Clemens123 Quote Link to comment
fxv1 Posted July 29, 2016 Author Share Posted July 29, 2016 Yes LAV decoder. DXVA native running. Using Custom Video Renderer. I will test with MADvr later on. support.zip Quote Link to comment
fxv1 Posted July 29, 2016 Author Share Posted July 29, 2016 (edited) Just tested with MadVR, get a black screen. Had a look at the filter settings, nothing obvious for UHD in there. Using the system default decoder it plays ok but not as good as LAV Edited July 29, 2016 by fxv1 Quote Link to comment
Clemens123 Posted July 29, 2016 Share Posted July 29, 2016 (edited) Is this the only UHD channel you have problems with? I have no Idea where the problem can be, you can try with madvr, but I read it UHD is still buiggy with MadVR. (so don't bother if you have a black screen there) I also have no idea if the problem is with the decoder or the renderer...settings seems ok... I hope someone more "Pro" can help you Edited July 29, 2016 by Clemens123 Quote Link to comment
blasgl Posted July 29, 2016 Share Posted July 29, 2016 FYI I get the best results with the following settings, you may want to try them. DVB Source Filter "Latency = 0" DVB Source Filter "Clock Selection = Audio Clock" DirectX options "Render Late Pictures = Unchecked" Leave everything else as it is now, including the EVR Custom. The discontinuities are most often due to a problem in the reception or signal transport. Do you have discontinuities for regular HD and SD channels? Quote Link to comment
fxv1 Posted July 29, 2016 Author Share Posted July 29, 2016 Thanks I will try those settings. Still happening..I get 2 discontinuities per minute (approx) ....not sure why. Also happens on HD channels. This also was an issue for me when I had the AMD R9 270x (on HD Channels) on DVB-S2 I get no problems on DVB-T2 channels on HD or SD channels. Quote Link to comment
nuts Posted July 29, 2016 Share Posted July 29, 2016 You can try to record UHD just to make sure there are no playback issues involved. http://en.DVBViewer.tv/wiki/Options_Recordings#Write_log_file If you get errors (Discontinuities) in your recording log it is not a playback problem. 1 Quote Link to comment
fxv1 Posted July 29, 2016 Author Share Posted July 29, 2016 I recorded 2 minutes of UHD which had 2 discontinuities at 1m40sec Playback showed the 2 discontinuities at 1m40sec as well. So what does that imply? Quote Link to comment
Griga Posted July 29, 2016 Share Posted July 29, 2016 Discontinuies can be caused by (1) weak or disturbed signal (a good signal strength doesn't necessarily mean a good signal quality!) (2) driver issues (e.g. insufficient buffering that usually can not be influenced, may take effect in case of high CPU load or latencies caused by other drivers, see explanation given here). (3) hardware limitations, limited bus bandwidth (4) discontinuous broadcasts, particularly demo loops where the continuity counter at the end doesn't fit the one at the beginning. Take your choice UHD Demo on Astra 2A (UK) The one on 12441 V? No discontinuities here shown by the TransEdit Analyzer (see download area, recommended tool for checking such things, no playback involved, my PC can't play it anyway...). I'm using a Hauppauge Nova S2 HD connected to a 55 cm dish in the western part of Germany. Quote Link to comment
blasgl Posted July 29, 2016 Share Posted July 29, 2016 Try a different receiver on the same cable. I would not trust you dvbs card a lot, the drivers are 8 years old. Is there no refresh? Quote Link to comment
Griga Posted July 29, 2016 Share Posted July 29, 2016 I would not trust you dvbs card One of those well known discontinuity makers Quote Link to comment
fxv1 Posted July 29, 2016 Author Share Posted July 29, 2016 I might invest in a new DVB-S2 card, any recommendations? Quote Link to comment
blasgl Posted July 29, 2016 Share Posted July 29, 2016 A new card won´t help if you have reception issues due to bad cables or connectors. I´d rule this out first. Then you might want to have a shot at newer drivers for your card. Regarding a new card, the DigitalDevices are probably the best around. But the prices are steep. Quote Link to comment

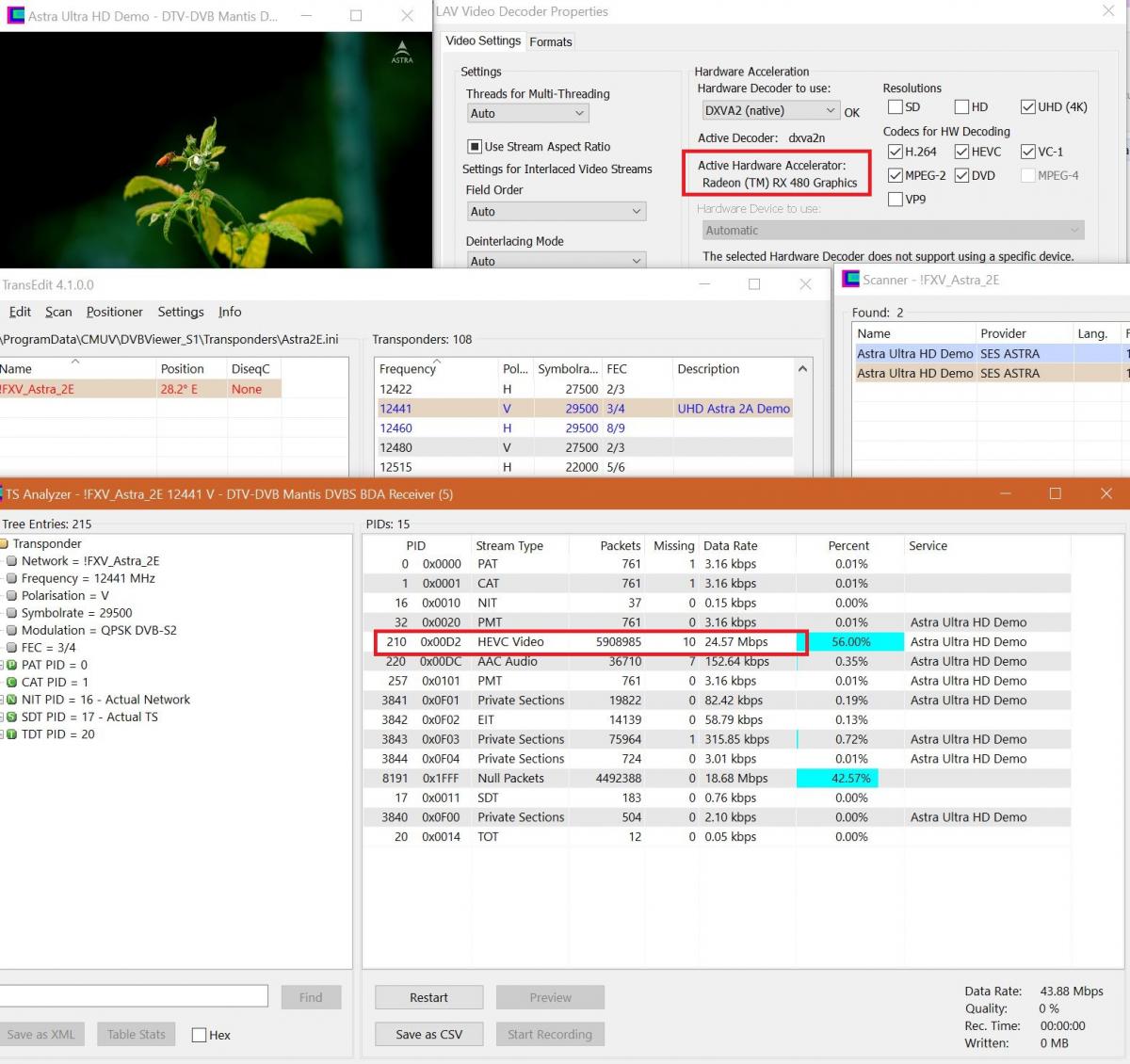

fxv1 Posted August 2, 2016 Author Share Posted August 2, 2016 TransAnalyzer LAV decoder correctly showing the RX480 for HW acceleration, this info is different when in DVBViewer. Few packets dropped HEVC Quote Link to comment
