Delphi
Quote



Xepg version 0.7.0.0 is available:

If you upgrade from Xepg 0.6.x.x it is a MUST to read the changelog.




Quote



XgrabDMS version 0.1.1.0 is available:

Study the new EPG structure inside the DVBViewer Media Server in detail





Details at a123.dk  and in the changelogs of DVBViewer 6.0 / DVBViewer Media Server 2.00



  • Haha 1

Share this post


Link to post
mrphlox
Posted (edited)

Many thanks for your great and valuable tool - it's an important chain member in my media center! :original:



I just wanted to let you know, I was upgrading from version 0.5.1.4 to 0.7.0.0 and first I was no longer able to do the import because of the following error:

Xepg Version: 0.7.0.0
IMPORT LOG
DESTINATION: DVBViewer Media Server
...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Processing: C:\Temp\xmltv\xepg\xmltv.xml

ERROR TYPE: Unknown Importing EPG

EXCEPTION MESSAGE---EVariantTypeCastError:Could not convert variant of type (Null) into type (OleStr)
Error on importing EPG
ERROR: Unknown Importing EPG

The reason is easy: Xepg no longer accepts a pretty-print formatted EPGFormat XML file, i.e. it doesn't like line breaks in the EPG format XML file.



OK:

<?xml version="1.0" encoding="UTF-8"?><settings><section name="WhereToDisplay"><entry name="1">1050</entry><entry name="2">1044</entry>

No longer accepted in 0.7.0.0:

<?xml version="1.0" encoding="UTF-8"?>
<settings>
	<section name="WhereToDisplay">
		<entry name="1">1050</entry>
		<entry name="2">1044</entry>
		<entry name="4">1024,1031,1049,1025,1028,1033,1040,1042,1053,1054</entry>
...

hth. best regards

Edited by mrphlox

Share this post


Link to post
Delphi

So, you have manually edited the EPG Format file, right?

I use Microsoft MSXML DOM (TXMLDocument in Delphi) to read and write the file. If that fails, the file is with 99,9999% probability not well-formed (illegal).



Try to open the file in Internet Explorer.

  • Like 1

Share this post


Link to post
mrphlox

First of all: Nope, there's no need for manual changes, reformatting Default.xml is enough and XML is still well-formatted, IE opens it without complains.

Default -formatted.xml

Share this post


Link to post
Delphi
Posted (edited)

You are right. The problem is described here:



http://stackoverflow.com/questions/16865979/delphi-exception-when-preserving-whitespace-in-txmldocument



I now remember: A user requested a way to insert a blank line into the EPG. I suggested to use the "Some Text" with a space and then insert that to an empty StartParagraphX in the EPG Format Editor. At least it will look as a blank line. To avoid the space to be ignored by the xml parser I had to add the line



  XMLDoc.ParseOptions := XMLDoc.ParseOptions + [poPreserveWhiteSpace];



I am sure this happened somewhere between  versions 0.5.1.4 (very old ;)) and 0.7.0.0



I suggest to leave things as is. CONCLUSION: Don't edit xml files created by Xepg.:)



Thanks for the feedback.

Edited by Delphi
add conclusion

Share this post


Link to post
Delphi

Just a bit more information:



The extra code line for preserving whitespace was introduced in version 0.5.2.0. An unwanted side effect was that pretty-print xml is no longer accepted in settings files. It is accepted in the XMLTV files ofcourse.



Xepg (TXMLDocument) never creates pretty-print xml files. You MUST have edited the file somehow, sometime in the past.



Well, never mind. I do not like that Xepg cannot read an xml file that is actually valid. It's not that easy to fix, unless preserving whitespace is turned off again.

Or: use another xml parser like OXml/EasyXml. For now I will leave it as is.







Share this post


Link to post
mrphlox

Thanks for your answers.



In fact, there's no need to format / edit the EPG format file - if one knows. I can't remember why I then reformatted it (it has been working fine at this time), but I guess I was just curious to see how it's structured. No problem for me if you leave it as is, but maybe the error message could be improved, indicating that the format file can't be parsed, not the xmltv file, as I thought for a while.





Share this post


Link to post
Delphi
6 minutes ago, mrphlox said:

but maybe the error message could be improved



This is allready on my TODO list. Whatever I decide to do, a more meaningfull error message is needed in any case. Thanks again  for the feedback, it was usefull.

Share this post


Link to post
hse

Hello, I set up xepg, pair my channels, and then download and import the epg into DVBViewer.

This works great on the first use. Then the second use it is all corrupt and trying to download

and import gives me an empty epg. If I check the channel pairings, instead of the channel

name it's just a random string of characters again and I have to repair all channels. This is very

annoying as my epg provider only offers a 3day epg so I need to repair channels every 3 days.

Does anyone know whats going on and why it's becoming corrupt? I've attached a pic of the

issue. Thanks in Advance.






Share this post


Link to post
Delphi

Here is some of my Pairings.xml file:




The 2310.honeybee.it is an XMLTV ID. Those should be the same between downloads.

From my XMLTV guide (honeybee.xml):

<channel id="2310.honeybee.it">

  <display-name lang="da">TV SYD</display-name>

  <url>https://honeybee.it/channel/tv-syd</url>

</channel>

 and later in honeybee.xml:

<programme start="20170510060100 +0200" stop="20170510063000 +0200" channel="2310.honeybee.it">

Try to check this out as a first attempt. The XMLTV IDs MUST be the same between downloads.





Share this post


Link to post
DetlefM

Is the source code for the tools available?

Share this post


Link to post
Delphi
8 hours ago, DetlefM said:



Is the source code for the tools available?



No, sorry.  However. I shall be happy to answer any questions you may have. That's best done in the other thread raw-epg-values

Share this post


Link to post
Delphi
Quote



Xepg version 0.7.1.0 is available

Fixed an error and added the option for inserting line breaks in the EPG Format Editor. Details in the changelog.








Quote



XGrabDMS version 0.1.1.1 is available

Fix: Forgot to UTF-8 encode the .LOG files created in invisible mode.
To upgrade: just replace the XgrabDMS.exe with the new one in your installation.


















Share this post


Link to post
Delphi
Quote



Xepg version 0.7.1.1 is available

Fix: Too many blank lines in the output in some cases. Details in the changelog.




If you have upgraded to the 0.7.1.0 this upgrade is a must have. Sorry for the inconvenience:blush:

Share this post


Link to post
videogamingtown

Is there any way to backup and restore the pairings?. I need to reinstall my OS soon and ive had to remap everything from scratch every time i reinstall the system.

Share this post


Link to post
Delphi

Yes, click link Xepg Data Folder in Xepg main window. Read the text file TheFiles.rtf for a description. The pairings are in the Pairings.xml and Config.ini is the Xepg settings.

  • Like 1

Share this post


Link to post
i0zjh02
Posted (edited)

Hi

I'm running DVBViewer and media server 2.0.3.0. I'm not sure if this started after i upgraded to the latest version.



I'm not getting any channels returned to Xepg from DVBViewer. Its launched when I run the pairing but no channels at all are shown in the right hand pane of the pairing window (all channels from the epg file are correctly shown in left hand pane). Although they all show in DVBViewer itself.



I tried to add new channels but they didnt appear in the pairing list (existing ones were there initially). I then emptied the channels completely from DVBViewer and re-added them all again and now non of them appear in xepg



I'm using IPTV channels and as suggested i've set the device up as a TS Stream device



I've tried both the live and beta versions of Xepg and both have the same results, any help would be appreciated



Edited by i0zjh02

Share this post


Link to post
Delphi
4 hours ago, i0zjh02 said:

Its launched when I run the pairing but no channels at all are shown in the right hand pane of the pairing window (all channels from the epg file are correctly shown in left hand pane). Although they all show in DVBViewer itself.





I have no idea of what is happening, sorry. Works fine here with the TS streams delivered by the DVBViewer installation. If you PM me some m3u/ini I maybe can check it out.

Share this post


Link to post
Delphi
7 hours ago, i0zjh02 said:

I'm using IPTV channels and as suggested i've set the device up as a TS Stream device





How did you do that?



The standard way of converting IPTV channels (Tunertype=4) to TS Streams (Tunertype=6) is:



1) In the DVBViewer Channel Editor select the IPTV channels



2) Right click the selection



3) Select Export



4) In the Save as dialog select File type: Playlist file (*.m3u, *.m3u8)



5) Save the export any where you like giving it a suitable name



6) Drag and drop the created Playlist file back into the DVBViewer Channel Editor



7) You might have to double click some channels to make the autoupdate functionallity come in play

Share this post


Link to post
noraccire
Posted (edited)

I am facing similar issue where only some iptv ts stream are visible in xepg.

reading the help I see that it might be related to channels having the same VPID AND APID... I have no clue how to fix it . Support will be welcome

Edited by noraccire
Incomplete post

Share this post


Link to post
Tjod

Change from the old IPTV device to TS streaming.



See the description from Delphi.



Share this post


Link to post
noraccire

So I did that ..

still not all the channel were not loaded by XEpg

CHANNEL PAIRING LOG
...
Reading 564 DVBViewer Channels
Different DVBViewer Channels found :10

However
back to DVBViewer right after the mp3 file import
some of the channels were having PID equal to zero
After a double click on the channel name , the PID get populated....
looks like the channels need to be read at least one time by DVBViewer in order to get proper PID populated

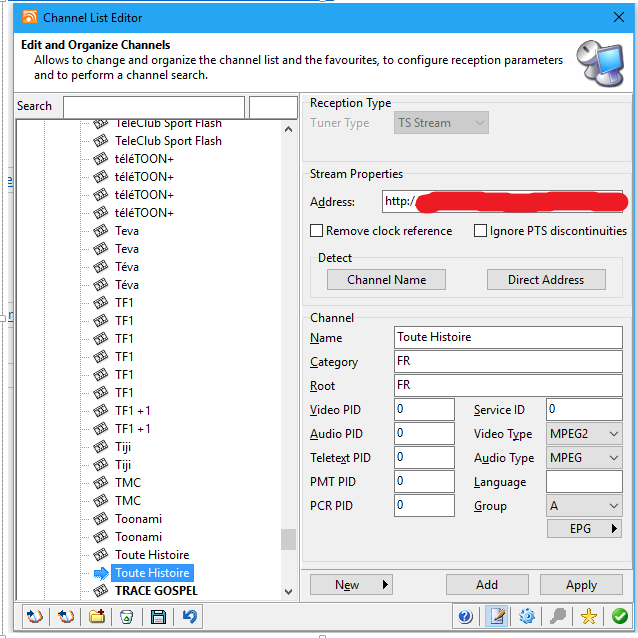

Before




After




Back to Xepg ,
that time the channels were visible


Share this post


Link to post
Griga
28 minutes ago, noraccire said:
looks like the channels need to be read at least one time by DVBViewer in order to get proper PID populated
Before



That's normal for "TS Stream" channels if only the URL is known. The DVBViewer channel auto-update detects the remaining data on first tuning. However, since the TS Stream EPG channel ID is not based on PIDs, but on a URL hash value, assigning EPG data should work regardeless of the PID state.



This also applies to other kinds of streaming that the TS Stream framework can handle, e.g. HTTP Internet TV and Radio. If you want to give it a try please read here at the beginning ("Added: Channel List") how you can load ready-made channel lists containing free TV and radio channels that are broadcasting over the internet. You may also use New  -> TS Stream in the Channel Editor to enter additional URLs.



Share this post


Link to post
nexusle

@Delphi



I have a XMLTV file that provides pictures for some series and movies by the <icon> flag.



Would it be possible, to implement a function in Xepg to import these pictures in DVBViewer?



Second question:



If the category in my XMLTV file is titled as (i.e.) "Movie/Drama", I mean EIT conform,  have I still to use Xtranslate, or does this recognize Xepg?

Share this post


Link to post
Delphi
10 hours ago, nexusle said:

I have a XMLTV file that provides pictures for some series and movies by the <icon> flag.



Would it be possible, to implement a function in Xepg to import these pictures in DVBViewer?



What I ship to DVBViewer/DMS/RS could look something like this:

<programme channel="560751030442891" stop="20170614235000" start="20170614210000">
  <title>Bodyguard</title>
  <event/>
  <description>Medvirkende...etc.
Dato: 01-01-1992
Genre: movie/Action/Crime/Drama/Music/Romance/Thriller [Ny] </description>
  <charset>255</charset>
  <content>16</content>
  <icons>65536</icons>
  <iconurl>https://hbcdn.uk/movie/fanart/45756/w780_161338.jpg</iconurl>
  <reviewurl/>
</programme>

So, the iconurl is imported if present. You will need to convince the developers of DVBViewer/DMS/RS to actually use it.



10 hours ago, nexusle said:



If the category in my XMLTV file is titled as (i.e.) "Movie/Drama", I mean EIT conform,  have I still to use Xtranslate, or does this recognize Xepg?



If the category has an English lang attribute (<category lang="en">Drama</category>) it should be recognized if it confirms to the ETSI 300 468 standard. Xepg always loads the English.xml language file.



Several years ago I contacted the XMLTV community with a request for supporting the integer version of category (<content> in the upper xml file) and got a clear answer: No.



It is in general not an easy task to convert text (can be anything) to a well defined number. The only way for now is manipulating the language file.

Share this post


Link to post
nexusle

@Delphi



Thanks for your answers.



because of pictures:



There was a tool named "EPGImporter" for DVBViewer. This tool could provide pictures to show up in DVBViewer. There should be a way already. I'll try to get some more informations about this.



In the meanwhile, here the link with sources: http://www.DVBViewer.tv/forum/topic/15578-epgimporter/

Share this post


Link to post
Delphi

I know know the "EPGImporter". It reqiures a special very old OSD. If I remember right it downloads all the pictures to a folder naming them using the old 32 bit channel identifiers and the EventID. Today 64 bit channel identifiers are used. It won't work with the DMS/RS. Unless special measures for supporting this are taken by the DVBVewer/DMS developers it will not be supported by Xepg.



The subject has been discussed several times before in the Xepg thread. I am not able to supply a link since the (very long) old Xepg thread was somehow deleted when implementing the new forum.



16 hours ago, Delphi said:

So, the iconurl is imported if present. You will need to convince the developers of DVBViewer/DMS/RS to actually use it.



This approach would require major changes in way the EPG is handled internally in DVBViewer/DMS. Since it is a feature for Xepg users only I think that chances for that to happen are low. Well, you never know:)



Share this post


Link to post
majstang
5 hours ago, Delphi said:

This approach would require major changes in way the EPG is handled internally in DVBViewer/DMS. Since it is a feature for Xepg users only I think that chances for that to happen are low. Well, you never know:)

I think the developers mainly discarded this idea because of EPG.dat is a binary file not supporting urls and the fact that implementing it in the DMS would require quite a skillful web designer (there is close to none webinterface development at the moment...nobody knows how or dont wanna do it for free). Funny thing is I have series/movie posters, fetched from my XMLTV (imdb posters), working with my own developed software, but this is entirely GUI based.

Edited by majstang

Share this post


Link to post
manül
On 11/1/2017 at 6:19 PM, Delphi said:

So, the iconurl is imported if present. You will need to convince the developers of DVBViewer/DMS/RS to actually use it.



Hi Delphi,



@nexusle sent me a PM over at the Kodi forum asking if support for XMLTV might be possible. I declined this specific request, however the DMS API provides support for loading media/images from the server (medialist and sideload API endpoint). So if you could extend your addon to fetch and store epg (icon) images in a userspecific directory, I can extend my PVR and sideload them.



To minimize http calls to the DMS I would suggest a filename pattern like <channel_id>_<epg_id>.png (or jpg). This way I can fetch the images per channel.

Share this post


Link to post
Tjod

If I remember that correctly, this is more or less the way the EPG image support is handled in the DVBViewer.

It looks for images stored as [configuration folder]\images\ServiceID-EventID.jpg for every EPG entry.

http://www.DVBViewer.tv/forum/topic/15222-epg-daten-werden-nicht-von-DVBViewer-übernommen/?tab=comments#comment-116170



But if you are planning to support this better ask @Griga if this is still a good format or if we should change the image name format. Because it was introduced in 2005 and only used by few people in connection with the EPGImporter.

Share this post


Link to post
Delphi
On 5/11/2017 at 9:01 PM, manül said:




You mean <event_id>_<epg_id>.png, right? The images in question are <programme> specific. For XMLTV the event_id is the 32 bit  integer start time of a <programme> tag.



I would consider doing such a thing if the web-interface/DVBViewer will support it (currently they don't). However, I don't like this approach since a lot of pictures are downloaded and most of them are probably never viewed. Furthermore the pics get outdated: a regulary clean up is needed.



The most logical thing to do would be to include the links into the epg (epg.dat). The epg.html api should then deliver them if present of course.



Sorry for the late answer.

Share this post


Link to post
manül
3 hours ago, Delphi said:



You mean <event_id>_<epg_id>.png, right? The images in question are <programme> specific. For XMLTV the event_id is the 32 bit  integer start time of a <programme> tag.

Yeah, that would work as well. DMS API supports searching with wildcards, so both <event_id>_<epg_id>.png or <epg_id>_<event_id>.png would be ok. I would put the epg_id first for better file sorting support.



Quote

I would consider doing such a thing if the web-interface/DVBViewer will support it (currently they don't). However, I don't like this approach since a lot of pictures are downloaded and most of them are probably never viewed. Furthermore the pics get outdated: a regulary clean up is needed.

Yep, that's a drawback.



Quote

The most logical thing to do would be to include the links into the epg (epg.dat). The epg.html api should then deliver them if present of course.

Extending the epg.dat is probably out of scope. One possibility without any breakage would be to add support for storing arbitrary properties for epg entries. Extension authors could then agree on known properties and add support for them. However I don't know if @Griga would be willing to add this + it would make epg listing (a lot?) slower as you need to lookup properties for every epg entry.

Edited by manül

Share this post


Link to post
Delphi
4 hours ago, manül said:

One possibility without any breakage would be to add support for storing arbitrary properties for epg entries



I would guess that this requires many changes in the DMS code (not known to me), and where should the values be stored if not in epg.dat? Well, ask Griga.:)





Share this post


Link to post
Delphi
Quote

Xepg version 0.7.2.0 is available






For all types of information (except "Line Break" and "Some Text") you can give the output a final personal touch. In the upper example square brackets will be put around the "Date". Details in the changelog and the help file.

Share this post


Link to post

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now


  • Similar Content

    • D3ltorohd
      By D3ltorohd
      Hallo Com,
      ich hoffe doch das hier viele XEPG und XTranslate nutzen um den DVBViewer mit EPG Daten zu füttern.
      Zumindest XEPG habe ich schon am laufen soweit so gut. Nun geht es an die Feineinstellungen.

      Ich nutze Kisscon oder EPG Buddy für die Erstellung der EPG XML Datei, das wäre die Quelle, funktioniert soweit. XEPG habe ich auch soweit eingerichtet, von 1-5. Epg wird aus der xml geladen und auf die gemappten Sender vom DVBV eingepflegt, die Automation läuft auch. So nun geht es ans Feintuning.

      XEPG :: Das ganze sieht im RS so aus wie auf dem Screen, leider in falscher Reihenfolge. Gibt es hier eine Möglichkeit, das ganze mit XEPG zu formatieren, damit ich bestimmen kann was wo steht, z.B. Erste Genre, dann die Beschreibung zum Schluss, Besetzung usw. Wenn das geht weiß ich nicht wie.



      Ich nutze den RS als Backend der auf meinem Server läuft, dort greift der Client (Kodi) drauf zu, nun gibt es in Kodi ja Genre Farben in der EPG Ansicht, diese würde ich nun gerne Einstellen, das heißt ich muss erst mal mit XTranslate die passenden Genre zu einander mappen, damit die Farben ansprechen, soweit bin ich schon, aber hier hört es auch schon auf. Ich weiß nicht wie XTranslate funktioniert und was ich genau machen muss, damit ich die Genre aus der xml Datei passend mappe, damit es in Kodi mit den Farben passt.

      Grüße
    • GBWebmaster
      By GBWebmaster
      Hallo Community,

      die Internet-TV-Fähigkeiten des DVBViewer Pro 6.0 ist super - und weckt so manche Begehrlichkeit. Für mich das EPG, welches Grundlage für Seh-Entscheidungen und Aufnahmen ist.
      Nun hab ich auch schon im Forum über Webgrab +, XEPG und EPG-Buddy gelesen und auch gesucht, finde aber leider nur englische Hinweise, was das Ganze nicht ganz so einfach macht.

      Deshalb wollte ich anfragen, ob mir jemand (auf Deutsch) die Arbeitsschritte erläutern kann, damit ich auch bei den Stream-Sendern mein geliebtes EPG genießen kann.
      Wäre eine große Hilfe für mich.

      Danke schon einmal vorab.


      Gruß GBWebmaster
    • Perlbo
      By Perlbo
      Hi,

      bin etwas ratlos ... ich möchte gerne, mein. EPG erweitern, da gerade bei Serien Staffel + Folge für mich sehr entscheidend ist. Ideal wäre langfristig ein mischen von DVB Stream und extern, aber momentan würde mir Extern als erste Schritt schonmal reichen.

      Ich bin soweit, dass ich per Webgrabplus mir eine XML erstellen lasse und diese dann per xepg in DVBViewer/DMS übertrage. Das klappt. Aber leider alles nur Manuell. Also graben manuell und einfügen auch. Das hätte ich gerne automatisiert ?

      Wie ich EPGDATA.COM reinbekomme, habe ich noch gar nicht hinbekommen. zwar liefert epgdata.com eine xml, darin scheint xepg aber keine channels zu finden zum pairen.

      vielleicht kann mich ja jemand an die Hand nehmen ...

      Danke ...
    • hse
      By hse
      Hello, I was using xepg with xmltv.co.uk but there xml files are all dead now.
      So im trying to get DVBViewer to go out and get epg data itself again but it's not
      doing anything. I deleted epg.dat in C:\ProgramData\CMUV\DVBViewer and
      restarted the program as administrator, my epg settings look like this

      http://i.imgur.com/VioCQUz.png

      At the moment it doesn't grab any epg data for any channel, if i sit on the
      epg radio channel called "EPG Background Audio" on 28.2e it also does nothing

      How can I get DVBViewer to grab EPG data on it's own again??
×
