desmondCH Posted June 27, 2016 Share Posted June 27, 2016 Evening all, apologies if this is the wrong place to post this! I have a DVB-T card, which runs a channel scan and picks up what it can just fine. I also have a DVB-S2 card, which is completely unable to pick up any channels whatsoever.... When I use Windows Media Centre (a win 8 box) it picks them up just fine. I've even managed to get NextPVR to work with the DVBS card, but I want to use DVBViewer! I'm in the UK so scanning on 28.2, but can't get anything - can anyone help please? I know the card works as MCE and NextPVR are picking up on it, and I know the software works as the DVB-T card is working fine. But no matter what I do (and I have played with the settings a LOT) I cant get DVBViewer or TransEdit to pick up the satellite channels... please help! let me know what diagnostic info you need if any? Thanks - i've done what i can to read faq's etc, but have got totally and utterly stuck! Quote Link to comment
desmondCH Posted July 2, 2016 Author Share Posted July 2, 2016 Alright, update to see if a bit more information helps: The problematic card: Tuner Card: TBS 6981 DVB-S/S2 Dual DBA, with 2 cables connected to the dish There is a dish on the roof that cannot move The tuner card that works fine in DVBViewer pro: Hauppage Nova-DT Dual DVB-T Both cards work in media centre. Both cards work in NextPVR (it found 376 channels on the DVB-S card) The DVB-S setup info from NextPVR that works is: CI/CAM: None - instances 0 DiSEqC: None (Single LNB) Satellite A: 0282 Astra 2E/2F/2G (28.2E) LOF1: 9750 Switch: 11700 LOF2: 10600 I hit scan, and bingo! An example of a successfully detected channel would be ITV, showing Freq: 10906/V/22000 SID:10240 In Transedit, the settings I am using for the card are: Type: satellite Name: DVB-S UK (think i renamed it at some point, cant remember why) Position: 28.2 E DiSEqC: None LOF1: 9750 LOF2: 10600 LOF SW: 11700 On the right hand screen of transedit, I get 81 transponders. If I pick the ITV frequecy above, 10906, V, 22000, 5/6, BSkyB and hit Scan Selected, it doesnt find anything. It scans frequencies first, PAT goes yellow, but shortly afterwards PAT, PMT and SDT go red, and NIT stays grey. Filter 1 is on both, Filter 2 is on Both, Filter 3 is unticked. Incidentally, in that list of 81 transponders, some are blue, seems to correspond to the DVB-S2 being ticked? In DVBViewerPro, if I go to reception settings/channel search, I chose the DVB-S reception type I chose the DVB-S UK transponder list (again, one i renamed. mouse hover indicates DVB-S_0282.ini Reception settings: Name: DVB-S UK LNB: universal LOF1: 9750 LOF2: 10600 LOF SW: 11700 DiSEqC: None Hit apply, hit scan it never finds anything Quote Link to comment
desmondCH Posted July 2, 2016 Author Share Posted July 2, 2016 support.zip and transponder file attached now that I've figured out how to do that! last thing to mention: am in the UK, south of London in deepest, darkest Kent. Thanks for any help, this is really frustrating... support.zip DVB-S_0282.ini Quote Link to comment
Derrick Posted July 2, 2016 Share Posted July 2, 2016 MS Media Center Receiver Service: Running MS Media Center Scheduler Service: Running not good! You have to disable it. Quote Link to comment
desmondCH Posted July 3, 2016 Author Share Posted July 3, 2016 Ooooh, i was excited about that - i'm afraid despite killing and disabling the services (and the nextpvr one, and then rebooting) still no joy... Quote Link to comment
Griga Posted July 3, 2016 Share Posted July 3, 2016 === TBS 6981 DVB-S/S2 DUAL BDA ===DriverVersion = 2.0.1.6 There is a later driver version 2.0.1.7 "specially for Windows 8": http://www.tbsdtv.com/download/ Quote Link to comment
Griga Posted July 3, 2016 Share Posted July 3, 2016 (edited) The TBS 6981 is a dual tuner card. In the file TransEdit.ini -> [Hardware] section I see Name.0=TBS 6981 BDA DVBS/S2 B Tuner/Demod Name.1=TBS 6981 BDA DVBS/S2 A Tuner/Demod First B, then A, so TransEdit always uses B. Have you already tried to scan with the second tuner A? For this purpose you need to disable the first one: Settings -> Hardware -> select first tuner -> Usage = Don't use. StandardInterface.0=1 Usually the Hardware -> Use standard interface option should be switched off. Edited July 3, 2016 by Griga Quote Link to comment
desmondCH Posted July 3, 2016 Author Share Posted July 3, 2016 Updated the driver which is confirmed as working on the latest version, and have tried disabling one & then the other of the receivers, and even switching off the Use Standard interface.... all sadly to no avail. 0 channels found :/ really appreciate the suggestions, thank you! Dont suppose you have any more? Quote Link to comment
Griga Posted July 3, 2016 Share Posted July 3, 2016 DiSEqC: None (Single LNB) How do you supply two tuners with a Single LNB? Quote Link to comment
Derrick Posted July 3, 2016 Share Posted July 3, 2016 How do you supply two tuners with a Single LNB? Tuner Card: TBS 6981 DVB-S/S2 Dual DBA, with 2 cables connected to the dish Must be at least a twin Quote Link to comment
desmondCH Posted July 3, 2016 Author Share Posted July 3, 2016 er, what config changes do i need to make then? The card does indeed have 2 cables going in... dont know where to find more LNB info - back of the dish? Quote Link to comment
Griga Posted July 3, 2016 Share Posted July 3, 2016 DiSEqC: None may be the wrong setting. It may have a different meaning in nextPVR. There is outdoor equipment that requires DiSEqC even if it only provides a single satellite position. Try Pos A/Opt A in TransEdit (don't forget to click Apply on the left side after the change) and then "Scan All". Quote Link to comment
desmondCH Posted July 4, 2016 Author Share Posted July 4, 2016 Have tried A/A, A/B, B/A, B/B, and simple A, all with no joy - running through the other options at the moment.... Quote Link to comment
desmondCH Posted July 16, 2016 Author Share Posted July 16, 2016 (edited) no diseq positions have worked at all. i know the card works, i know the reception is ok (2 other bits of software working fine) I know DVBViewer works (DVB-T card working) what do I do? please help!! (PS. latest version of DVBViewer to download appears to be infected with trojan win32/Varpes.N!cl ) Edited July 16, 2016 by desmondCH Quote Link to comment
Griga Posted July 16, 2016 Share Posted July 16, 2016 Sorry, no more ideas. Without knowing the type of outdoor equipment it's hard to tell what's going on. Are there additional receivers in the house connected to the dish or only your two tuners? latest version of DVBViewer to download appears to be infected with trojan win32/Varpes.N!cl Fore sure a false positive. Check it on VirusTotal. Quote Link to comment

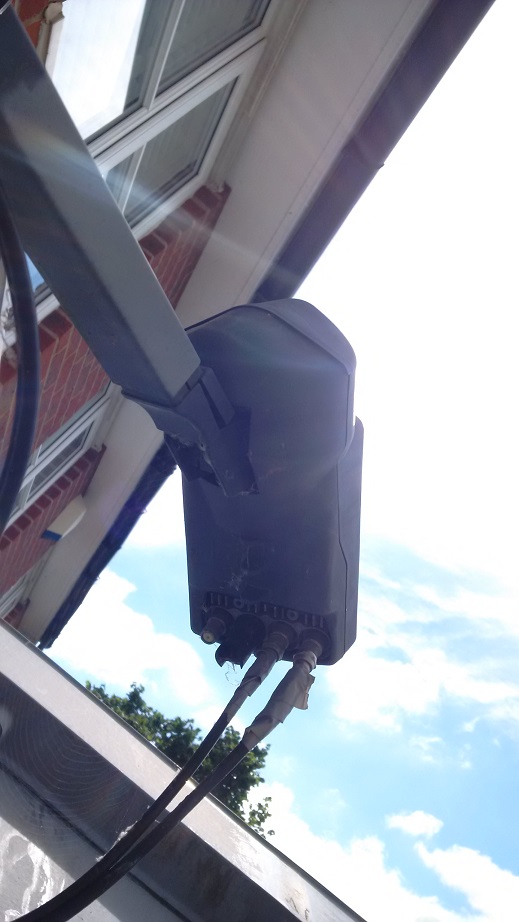

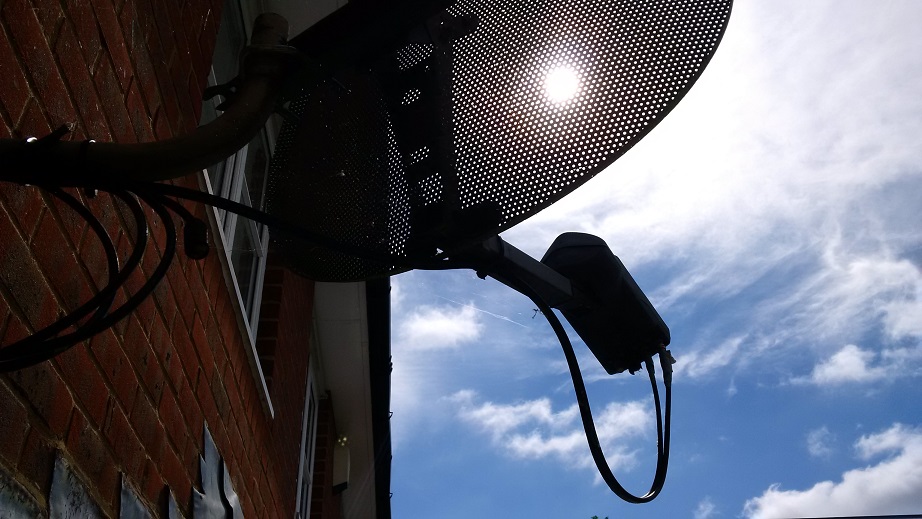

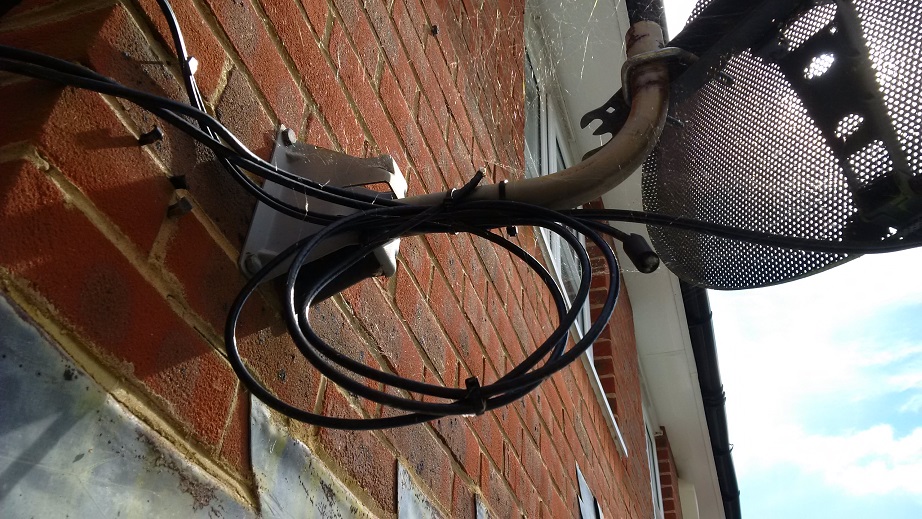

desmondCH Posted July 16, 2016 Author Share Posted July 16, 2016 The DVB-S2 tuner is a single card, with two satellite cables connected to it. I have attached photos of the dish itself - it looks like there is one disconnected cable, which I think used to feed another receiver elsewhere in the house (no longer anything beyond this computer connecting now) and the computer has two cables connected to it that run back to the dish. Dish appears to be fixed. Hope that helps? Quote Link to comment
Griga Posted July 17, 2016 Share Posted July 17, 2016 Well, it looks like a Quad LNB (though not very professionally installed), not a Quattro LNB plus switch that may require DiSEqC. I guess that's why it works with NextPVR set to DiSEqC = None (on the same PC, I assume). In theory it should work with the same settings in DVBViewer. I have no idea why it doesn't. Sorry, no better news... Quote Link to comment
Griga Posted July 17, 2016 Share Posted July 17, 2016 P.S. Just to make sure: You have tried "Scan All" in TransEdit, and none of the transponders delivered results? Quote Link to comment
