Missing Sound

[McenterFreak]

I know that i have a very old version of DVBViewer/MediaServer. But it works perfectly for me.
if it ain't broke don't fix it is my policy

DVBViewer Pros is V6.1.7.0
BUT!
In the last few days sound is missing in both Live TV and recordings, but only on a few chqnnels
But today sound came back. Here ar the logs:



Sound working:


DR1 HD 07-11-2021
D:\Recorder 3\2021-11-07_23-15-34_DR1 HD_Under Sandet - Under Sandet.ts
Device: Digital Devices DVB-S2 Tuner 5 (1)
EventID: 1399304512
Timer Name: Under Sandet - Under Sandet
Timer Start: 07-11-2021 22:05:00
Timer Duration: 01:55:00 (115 min. incl. 5 min. lead time, 10 min. follow-up time)
Timer Options: Teletext=1, DVB Subtitles=1, All Audio Tracks=1, Adjust PAT/PMT=1, EIT EPG Data=1, Transponder Dump=0
Timer Source: Web

23:15:34 / 00:00:00 (~ 0,00 MB) Start Recording
23:15:34 / 00:00:00 (~ 0,00 MB) Under sandet running | EventID: 64241 PDC: 0x00000
23:15:34 / 00:00:00 (~ 0,00 MB) EventID change 1399304512 to 64241
23:15:35 / 00:00:00 (~ 0,00 MB) Den tynde blå linje not running | EventID: 64242 PDC: 0x00000
23:15:35 / 00:00:01 (~ 1,08 MB) PID 1280: H.264 Video, 16:9, 1920x1080, 25 fps
23:15:35 / 00:00:01 (~ 1,08 MB) PID 3498: MPEG Audio Stereo, 48 khz, 256 kbps
23:15:35 / 00:00:01 (~ 1,08 MB) PID 6133: Videotext
23:16:06 / 00:00:32 (~ 39,52 MB) Stop

Average Data Rate: 1,230 MB/s
Total Size: 39,5 MB (41436516 Bytes)



Sound not working:


DR1 HD 07-11-2021
D:\Recorder 3\2021-11-07_18-48-36_DR1 HD_TV AVISEN 18 30.ts
Device: Digital Devices DVB-S2 Tuner 2 (2)
EventID: 1399296960
Timer Name: TV AVISEN 18:30
Timer Start: 07-11-2021 18:25:00
Timer Duration: 00:45:00 (45 min. incl. 5 min. lead time, 10 min. follow-up time)
Timer Options: Teletext=1, DVB Subtitles=1, All Audio Tracks=1, Adjust PAT/PMT=1, EIT EPG Data=1, Transponder Dump=0
Timer Source: Web

18:48:36 / 00:00:00 (~ 0,00 MB) Start Recording
18:48:37 / 00:00:01 (~ 0,00 MB) TV AVISEN 18:30 running | EventID: 64235 PDC: 0x00000
18:48:37 / 00:00:01 (~ 0,00 MB) EventID change 1399296960 to 64235
18:48:38 / 00:00:01 (~ 0,00 MB) Syv kontinenter, en verden not running | EventID: 64236 PDC: 0x00000
18:48:38 / 00:00:01 (~ 0,38 MB) PID 1280: H.264 Video, 16:9, 1920x1080, 25 fps
18:48:38 / 00:00:01 (~ 0,38 MB) PID 6133: Videotext
18:50:39 / 00:02:02 (~ 144,46 MB) Stop

Average Data Rate: 1,187 MB/s
Total Size: 144,5 MB (151474608 Bytes)



Sometimes it works, but some times it is not working
Any ideas?





[HaraldL]

In second block there is no audio track detected by DVBViewer/DMS like "PID 3498: MPEG Audio Stereo, 48 khz, 256 kbps", such a line is missing. There can be various reasons for that, Griga surely knows better but as a first shot what comes in my mind: Don't know if there could be newer audio formats not detected by older versions. Or an outdated channel list, many channels have more than one audio track with different IDs, for different languages, AC3 multichannel or audio description etc. Perhaps they send audio sometimes with an ID not in your list?



I cannot check myself, am on Astra 19.2° only where I don't find a "DR1 HD" channel so cannot verify that.



Best way to find out would be creating a support.zip in debug mode, like described here: support.zip . And perhaps a screenshot of TransEdit tool, analyzing the transponder of the channel while no audio found in DVBViewer. As I see you have multiple tuners so it should be possible to check with TransEdit while watching.



[McenterFreak]

Thank You HaraldL
I will try with Support.zip first. Have never used TransEdit, so my skill with this tool is zero

support.zip

[Griga]

The support.zip originates from the client PC, not from the server PC where things are actually happening...



Since the channel in question is encrypted, a possible reason for missing audio is failed decryption. The recorder discards elements that are still encrypted.



TransEdit should be used on the server PC:

• Store TransEdit in the DVBViewer program directory of the server PC (where DVBViewer.exe is) and launch it.
• Go to Settings -> Hardware and tick "Has CI" for your DD Cards that are associated with a CI. Click Save.
• Select the transponder list for the satellite position that you receive on the left side of the TransEdit main window.
• Select the frequency of the channel in question on the right side.
• Click Analyze.
• The Analyzer Window enumerates all streams including their PIDs that are broadcasted on this frequency. Check if the audio stream in question is among them.
• Right-click the audio stream in question and click "Descramble". If it gets decrypted, it should turn from red to black.



[McenterFreak]

Thank you Griga
I will try that tommorow


[McenterFreak]

22 hours ago, Griga said:



• Right-click the audio stream in question and click "Descramble". If it gets decrypted, it should turn from red to black.



Done as described, but it dosent turn black:

[Griga]

What about video? Can you decrypt other channels in this way?



Make sure that the Analyzer uses a device with assigned CI/CAM and "Has CI" checked. TransEdit allocates the first free (!) tuner from the top in the Settings -> Hardware -> Device List. If it is occupied (e.g. by the Media Server), TransEdit will use the second suitable device, etc. So it is recommendable to stop the Media Server while you are testing with TransEdit.



[McenterFreak]

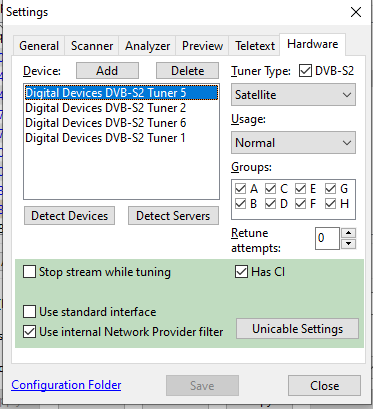

All 4 tuners have Has CI checked
When i Descramble video, it turns black:

[McenterFreak]

When i Descramble audio, it stays red:

[McenterFreak]

Made a complete shutdown of server. Looks like it solved the problem, but i am not sure, because before it sometime worked and sometime not. I will come back here if it fails again. When i Descramble Audio in TransEdit now,  text turn black

[Griga]

If it happens again (and can be verified in TransEdit), expand the PAT node in the tree view on the left side of the Analyzer window. Right-click the  ServiceID entry for the channel in question and select "Copy as XML". Then paste the result here in the forum. Or, if it is too long, paste it in a text editor and attach the (zipped) XML file here.



[McenterFreak]

Thank you Griga
