Dvico Fusion HDTV5 USB Gold (Bluebird BDA Tuner)

[Keithk]

I installed DVBViewer Pro 4.8.1.0 and it works fine with my

Satellite Tuner card ( TBS 9925)and it reconizes my

USB Off Air Tuner- Dvico Fusion HDTV5 USB Gold (Bluebird BDA Tuner)

but when I do a channel scan it finds nothing.



any suggestions ?

support.zip

[Joshua06]

Please download the new version 4.9.5.0, old versions are no longer supported

[Tjod]

There is no 4.9 Demo

[Keithk]

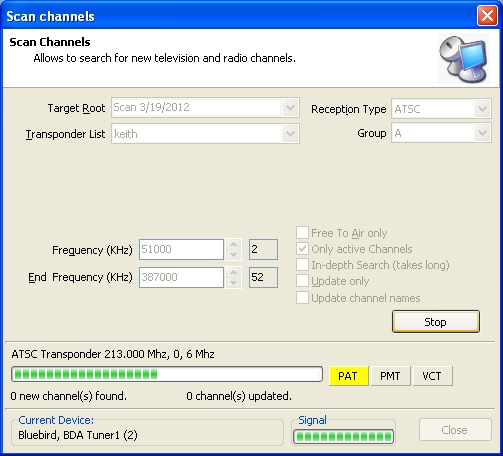

Here is a snapshot of the Scan Screen



Maybe this wil help, it shows a Green Bar for Signal,

but no channels found..

[Griga]

In your support.zip I see



<entry name="Name">Bluebird, BDA Tuner1 (2)</entry>

<entry name="TunerType">2</entry>



TunerType 2 is DVB-T, but your screenshot shows "Reception Type ATSC". Doesn't match. So I guess you want to receive ATSC, but it can't work since your device has been detected as DVB-T. Maybe setting it manually to ATSC in the hardware options helps...

[Keithk]

I must have been trying many options and forgot to correct it before

upoading the file..

fixed that.. still no good



entry name="LowBandWidth">1</entry>

<entry name="UseHardwareFilter">1</entry>

<entry name="StopStream">1</entry>

<entry name="NoStandard">1</entry>

<entry name="useMSNP">1</entry>

<entry name="Name">Bluebird, BDA Tuner1 (2)</entry>

<entry name="TunerType">3</entry>

<entry name="Status">1</entry>

<entry name="InstID">Bluebird, BDA Tuner1 1</entry>

<entry name="DeviceNr">2</entry>

<entry name="Vendor">0</entry>

<entry name="Priority">2</entry>

<entry name="Tag">0</entry>

<entry name="ClassID">{EAFB3270-65C7-4662-99D6-C06D5E009FA3}</entry>

<entry name="Groups">255</entry>

<entry name="Retune">5</entry>

<entry name="SkipComponents">0</entry>

[Griga]

Does it work if you switch "Direct Tuning" off?

[Keithk]

Does it work if you switch "Direct Tuning" off?





I'll give that a try...



thanks

Edited March 22, 2012 by Keithk

[Keithk]

That did the Trick..



Thank you very much !

[Griga]

It's an old bug that is fixed in the current DVBViewer release. When passing the frequency to the driver a 1750 khz offset has to be subtracted. In older versions only the "Direct Tuning off" mode does it correctly.
