Way to fix channels with wrong aspect ratio

Recommended Posts

dvbrewer

Quite a few satellite channels here in the UK are set at 4:3 but actually transmit permanently 16:9 content- it would be great if there was a setting in the channellist editor where you could force a ratio for different channels. Or, perhaps there is already a way to do this by editing some files in the DVBViewer folders?

Edited by dvbrewer

Share this post


Link to post
schlemiel

I would also like to see this very much OR a feature that remembers the zoom of every channel. (Like the volume)

Share this post


Link to post
Griga

Which channels on which frequency? I'd like to check it.

Share this post


Link to post
schlemiel

I´m in Brazil and watch the Dutch channel 'BVN' on SatMex6, so i guess that´s not an option for you. :)

But BVN is also broadcasted on Astra1 so you could try to check there.



I contacted BVN about this. They said it should come thru as 16:9, but some decoders thínk it's 4:3. I tried a dreambox and now the KNC-ONE and both say it's 4:3, so i guess the problem is at their end.

Share this post


Link to post
dvbrewer
Which channels on which frequency? I'd like to check it.

All on Eurobird 1 (28.5), Simply Movies on 11343V, World Movies on 12643V , SuperCasino on 11661H. For SuperCasino and Simply Movies all programming is formatted for 16:9 but flagged 4:3. For World Movies, the majority is formatted for 16:9, but a small amount of films are letterboxed for 4:3, but I would still like to default to 16:9, and if it is wrong I can change it manually. Thanks for your interest :) .

Edited by dvbrewer

Share this post


Link to post
dvbrewer

Another person support this proposal here.

Share this post


Link to post
Griga

I see what you mean.



They are switching wildly between 16:9 in a 4:3 container (preferably ads with broadcasted black bars, but the aspect ratio is ok) and true anamorphic 16:9 wrongly flagged as 4:3. In this case the aspect ratio is not ok.



it would be great if there was a setting in the channellist editor where you could force a ratio for different channels.

I'm not directly involved in DVBViewer Pro development, but I don't think it will happen, since it isn't DVBViewer's task to compensate each and every bad broadcasting habit. You know, some people want brightness/contrast per channel, others zoom presets per channel, you want aspect ratio per channel... in the end it would blow up the UI intolerably.



So I'd say accept that you have to correct it manually for these few channels...

Share this post


Link to post
dvbrewer
I'm not directly involved in DVBViewer Pro development, but I don't think it will happen, since it isn't DVBViewer's task to compensate each and every bad broadcasting habit. You know, some people want brightness/contrast per channel, others zoom presets per channel, you want aspect ratio per channel... in the end it would blow up the UI intolerably.



So I'd say accept that you have to correct it manually for these few channels...

Hmm, I still think it would be a good feature to implement as as far as I can see there is no way to switch from auto to 16:9 with one remote press, you have to press a button 4 times to get to 16:9 then twice again to get back to auto :bounce: ....

Edited by dvbrewer

Share this post


Link to post
Valts

Another note about aspect ratios and zoom, for TV channels they 99% work damn fine actually. But when I go to playback some video quite often it goes a bit wrong. For example in case of 512x384 (perfect 4:3) I end up with picture that's not reaching top and bottom of the screen (16:9 1080p). While obviously there's plenty of room left on the sides. So I end up with 4 black borders. So I go adjust pan&scan... so I don't see why with default settings it goes wrong.

Edited by Valts

Share this post


Link to post
Griga
I still think it would be a good feature to implement

Well, I have about 3000 channels in my list (among them Astra/Eurobird 28° East channels), and I would need this feature for let's say only 3 of them (0.3 percent) that I never watch. Most users don't need this feature at all. In most cases the additional UI and code would be useless overhead that has to be "payed" by all users. So under this economical point of view... forget it.



However, there is another possible solution that came to my mind this morning: A plug-in that patches the video headers of certain pre-defined channels to 16:9 in the incoming stream. The user would have to provide a list (as text resp. INI file) containing some significant parameters of these channels, like Service ID, Video PID... the plug-in starts working when it recognizes one of these channels. It would additionally patch recordings from the played channel (no background recordings, however).



This solution requires no additional UI and no code overhead in DVBViewer.



So I end up with 4 black borders. So I go adjust pan&scan

That's when the broadcaster puts a 16:9 source into a 4:3 picture. The black bars at the top and bottom are part of the picture (DVBViewer can't see them), the bars at the left and right are there because DVBViewer tries to display 4:3 correctly in a 16:9 area. Use the zoom presets (see recall #0, #1... in the zoom settings) for fast adjustment. AFAIK they are accessible via RC, but ATM I can't remember how...

Share this post


Link to post
Lars_MQ
(no background recordings, however).

Well with the pro such a plugin would work also with background recordings. it uses the same mechanism as the Recording Service

Share this post


Link to post
Griga
Well with the pro such a plugin would work also with background recordings. it uses the same mechanism as the Recording Service

Then I'd suggest that I do the core coding (reading the files, channel recognition, messing about with the video headers), and you adjust it to other/extended mechanisms, ok? :bounce:

Share this post


Link to post
Lars_MQ

agreed :bounce:

Share this post


Link to post
dvbrewer
agreed :)

Wow things are moving pretty quick :bounce: - I am very grateful for you doing this! I guess there will always be new (smaller) channels that have this problem for a while after launching, hopefully they will all eventually get fixed (unless they go bust :bye: ).....

Share this post


Link to post
Lars_MQ

Oh I'm sure we can give them some useful tips how to follow the specs correctly, they just have to ask :bounce: Griga does point some german broadcaster now and then into the right direction :bye:

Share this post


Link to post
Griga

Ok, a proof-of-concept-plugin already patches the Simply Movies and World Movies video headers successfully to 16:9.



It works like this: I go to the DVBViewer channel editor, select the channel in question, export it as INI file (containing all channel parameters), open the file with a text editor, add an "PatchType=16:9" entry, rename the file to *.patch, store it in the DVBViewer configuration folder, re-launch DVBViewer, the plugin reads all *.patch files, creates a list of the contained channels, I tune one of them, the plugin recognizes it and does its job.



However, since it is supposed to become an all-purpose stream patcher plugin for curing bad broadcasting habits, some careful design and functionality checking is pending now...

Share this post


Link to post
dvbrewer
Ok, a proof-of-concept-plugin already patches the Simply Movies and World Movies video headers successfully to 16:9.



It works like this: I go to the DVBViewer channel editor, select the channel in question, export it as INI file (containing all channel parameters), open the file with a text editor, add an "PatchType=16:9" entry, rename the file to *.patch, store it in the DVBViewer configuration folder, re-launch DVBViewer, the plugin reads all *.patch files, creates a list of the contained channels, I tune one of them, the plugin recognizes it and does its job.



However, since it is supposed to become an all-purpose stream patcher plugin for curing bad broadcasting habits, some careful design and functionality checking is pending now...

Sounds great Griga :bounce:. What other things are you looking to fix? Another thing slightly off topic, any idea why all the WMV clips shown on this page shows as 4:3 in DVBViewer (tried ffdshow and MPC-HC)?

Share this post


Link to post
Griga
What other things are you looking to fix?

E.g. the wrong BBC HD AC3 PES start codes.



any idea why all the WMV clips shown on this page shows as 4:3 in DVBViewer

I've downloaded the Dolphins 720p sample, and here DVBViewer Pro/GE play it as 16:9. The video decoder is WMVideo Decoder DMO, and the source filter/splitter the WM ASF Reader (both MS stuff, visible under View -> Filters resp. in GraphStudio -> Connect to Remote Graph).



WMV is not handled explicitely by DVBViewer. Playback is more or less delegated to DirectShow. It is up to the splitter filter to detect the resolution/aspect ratio correctly and expose the values on the video output pin, where DVBViewer picks them up.

Share this post


Link to post
Griga

It's time for a beta test:



The StreamPatcher Plugin 1.0.0 is available in the members area, beta section. Do the following:



1) Store the StreamPatcher.dll in DVBViewer\Plugins. If you want it to patch the stream for background recording (of channels that are not viewed while recording), create additional folders within the plugin folder according to these instructions and store a copy of the DLL in each of them. However, this will not work with DVBViewer GE. In DVBViewer GE channels will only be patched while they are viewed.



2) The ZIP additionally contains *.patch files. That are (renamed) INI files exported from the DVBViewer channel editor with an additional entry. Store them in the DVBViewer Configuration Folder (see About Menu in DVBViewer Pro).



- SuperCasino.patch contains all channels on Eurobird 1 that need a 16:9 patch (Simply Movies on 11343V, World Movies on 12643V , SuperCasino on 11661H).



- BBC HD (AC3).patch contains the BBC HD AC3 track data. It will let the plugin correct the wrong AC3 PES startcodes (see here) in the incoming stream, so you don't have to aftertreat the recordings anymore.



3) Launch DVBViewer and try...



The plugin will show up as "Stream Patcher" in the Plugins Menu (only the instance responsible for the viewed channel). If no patching is going on, the item is disabled, otherwise enabled and checkmarked, allowing to switch patching off and on.



For creating your own patch files do the following:



1) Export the channel(s) in question from the DVBViewer channel editor as INI file(s).



2) Open them with a text editor. Add the desired patch type. It can be done in two different ways:



- "Globally" for all channels contained in the file by adding a [Patch] section and within this section the PatchType entry, e.g.



[Patch]

PatchType=16:9



- Individually for a single channel by adding the PatchType entry to the channel data section, e.g



[Channel0]

PatchType=16:9

........



Other supported PatchType identifiers are 4:3, AC3PES and ScrambledFlag (remedy against lazy CAMs spoiling recordings, see here).



3) Rename the edited files from *.ini to *.patch and store them in the DVBViewer Configuration Folder (see above). The Plugin reads all *.patch files when DVBViewer is launched and creates a list of all contained channels and audio tracks. Whenever a channel is tuned, the plugin scans the list and patches the video and/or audio stream(s) if it finds the channel in the list.



Please note: If the channel data changes (different Service ID, TransportStream ID, PMT PID, Video PID, Audio PID, Frequency...) the patch file must be updated!

Share this post


Link to post
dvbrewer
It's time for a beta test:



The StreamPatcher Plugin 1.0.0 is available in the members area, beta section. Do the following:



1) Store the StreamPatcher.dll in DVBViewer\Plugins. If you want it to patch the stream for background recording (of channels that are not viewed while recording), create additional folders within the plugin folder according to these instructions and store a copy of the DLL in each of them. However, this will not work with DVBViewer GE. In DVBViewer GE channels will only be patched while they are viewed.



2) The ZIP additionally contains *.patch files. That are (renamed) INI files exported from the DVBViewer channel editor with an additional entry. Store them in the DVBViewer Configuration Folder (see About Menu in DVBViewer Pro).



- SuperCasino.patch contains all channels on Eurobird 1 that need a 16:9 patch (Simply Movies on 11343V, World Movies on 12643V , SuperCasino on 11661H).



- BBC HD (AC3).patch contains the BBC HD AC3 track data. It will let the plugin correct the wrong AC3 PES startcodes (see here) in the incoming stream, so you don't have to aftertreat the recordings anymore.

Thanks for your work Griga! :bye: I tried it- there are a couple of issues, first the plugin does not seem to be active for BBC HD at all, I noticed FEC in the patch file is 3 but in channel editor is 5/6 - is this the problem? Also if you switch from BBC HD to Simply Movies, World Movies or SuperCasino the aspect patch does not work, it will work going from any other channel.



I notice that World Movies seems to be inconsistent, some of their movies do seem to be formatted for 16:9 (but flagged 4:3), but some are letterboxed in 4:3, maybe it would better to remove this from the patch because it might be a pain if you want to zoom a letterbox and it is in 16:9 so you have to change aspect first and then zoom? Many music channels (Brit Asia TV, Channel AKA, Clubland, Starz) also seem to be inconsistent, all are flagged 4:3, often show 16:9 formatted videos, but sometimes letterboxed content :bounce:. Maybe for these inconsistent channels it would be better to allow a quick toggle shortcut between Auto and 16:9? Currently I can only see a way to cycle through all the aspect ratio options which is somewhat tedious.



A couple more channels that are consistent and can be added to the patch:



Monte Carlo TV on 11546H (formatted for 16:9, flagged 4:3)



WatchmeTV.TV aka Psychic & Soul on 11343V (formatted for 16:9, flagged 4:3)

Share this post


Link to post
Griga
first the plugin does not seem to be active for BBC HD at all

How do you know? I've just checked it again with a BBC HD recording and a hex viewer - here it works. All 00 00 01 C0 PES startcodes were replaced by 00 00 01 BD. Does the Stream Patcher item in the plugins menu show a checkmark after tuning BBC HD?



I noticed FEC in the patch file is 3 but in channel editor is 5/6 - is this the problem?

No. The plugin compares the Tuner Type (DVB-S/T/C), Transportstream ID, Service ID, PMT PID, Video PID, Symbolrate, Frequency (with a +/- 2 MHz tolerance), Polarisation.



Also if you switch from BBC HD to Simply Movies, World Movies or SuperCasino the aspect patch does not work, it will work going from any other channel.

Confirmed. Seems to be a DVBViewer Pro issue. In DVBViewer GE it works. Maybe Lars knows why...



@Lars: It doesn't work if channel switching implies rebuilding the filter graph (radio -> World Movies or H.264 -> World Movies), but it works on second tuning.



maybe it would better to remove this from the patch
A couple more channels that are consistent and can be added to the patch

Feel free to do it. :bounce:

Share this post


Link to post
Lars_MQ
@Lars: It doesn't work if channel switching implies rebuilding the filter graph (radio -> World Movies or H.264 -> World Movies), but it works on second tuning.

Yeah my fault, I messed up the order of plugin calls. the evtunerset gets called after the (hardware) tunersetting but before the graph is eventually torn down with a accompaning stopgraph to the plugin :bounce:



This does only influence the main playback, background recordings are not affected.

Share this post


Link to post
dvbrewer
I've downloaded the Dolphins 720p sample, and here DVBViewer Pro/GE play it as 16:9. The video decoder is WMVideo Decoder DMO, and the source filter/splitter the WM ASF Reader (both MS stuff, visible under View -> Filters resp. in GraphStudio -> Connect to Remote Graph).



WMV is not handled explicitely by DVBViewer. Playback is more or less delegated to DirectShow. It is up to the splitter filter to detect the resolution/aspect ratio correctly and expose the values on the video output pin, where DVBViewer picks them up.

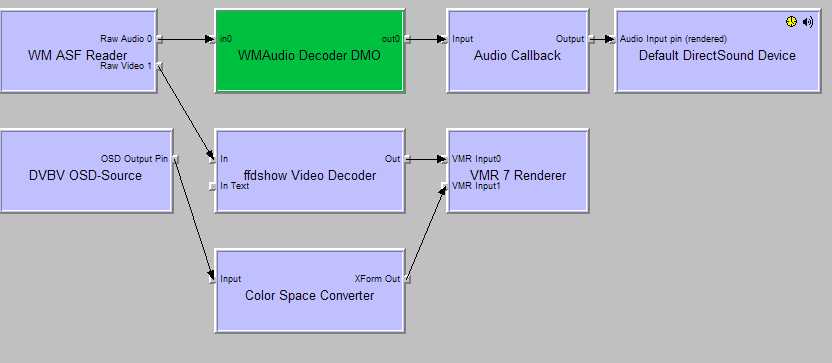

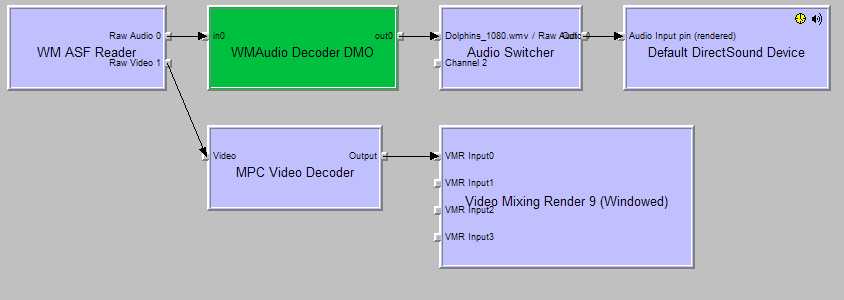

The problem is ffdshow and MPC decoder override the WMVideo Decoder for me and there seems to be an incompatibility with ffdshow and MPC and DVBViewer for these videos. In MPC-HC the WMV files plays correctly with MPC decoder. I have attached graphstudio graphs for playing this file in DVBViewer and MPC-HC.





How do you know? I've just checked it again with a BBC HD recording and a hex viewer - here it works. All 00 00 01 C0 PES startcodes were replaced by 00 00 01 BD. Does the Stream Patcher item in the plugins menu show a checkmark after tuning BBC HD?

If I tune to BBC HD the stream patcher is not ticked when tuning BBC HD, for Simply/World Movies, SuperCasino it is ticked as long as I don't tune from BBC HD.



Edited by dvbrewer

Share this post


Link to post
Griga
there seems to be an incompatibility with ffdshow and MPC and DVBViewer for these videos.

I'd say ffdshow somehow overrides the DVBViewer attempts to control the aspect ratio. Maybe you have to change one of the countless ffdshow options.



Another possibility would be to change the DirectShow merit values of the decoders, so that the MS decoder becomes the first choice. Not so easy with DMOs. The current RadLight Filter Manager release doesn't suppot it yet. However, I've already uploaded an update (without announcing it), that is able to deal with DMOs:



http://www.DVBViewer.com/griga/rlfm_bin1_6_1.zip



the stream patcher is not ticked when tuning BBC HD

Some channel data difference, I guess. Compare it, or create your own patch file by exporting BBC HD (AC3) as INI and adding the PatchType entry.



A hint for aspect ratio patching: For me it was quite easy to export all to-be-patched channels to one ini file because I've implemented multi-selection in the DVBViewer GE channellist lately (not yet released). In DVBViewer Pro I would do it in the following way:



1) Select one of the channels in the DVBViewer Pro channel editor and give it a new (not yet existing) category name. Click Apply. DVBViewer will create the new category.



2) Drag & drop the other channels into this category.



3) Select the category and export it (resp. all contained channels) as INI. After that, click the "Reload channellist" tool button to return to the previous state.



4) Add



[Patch]

PatchType=16:9



in the INI export, rename it to .patch, store it in the configuration folder.

Share this post


Link to post
dvbrewer
I'd say ffdshow somehow overrides the DVBViewer attempts to control the aspect ratio. Maybe you have to change one of the countless ffdshow options.



Another possibility would be to change the DirectShow merit values of the decoders, so that the MS decoder becomes the first choice. Not so easy with DMOs. The current RadLight Filter Manager release doesn't suppot it yet. However, I've already uploaded an update (without announcing it), that is able to deal with DMOs:



http://www.DVBViewer.com/griga/rlfm_bin1_6_1.zip

Can it be an ffdshow option if the same thing happens with MPC? I know MPC and ffdshow are related but I'm not sure what setting would have to be changed. Thanks for the radlight update, it is very good tool which I already use so great to have this new version- I'll try it out tomorrow :).

Some channel data difference, I guess. Compare it, or create your own patch file by exporting BBC HD (AC3) as INI and adding the PatchType entry.

I think it is the DiseqC as I have no switch, in your patch DiseqC=9, DiseqCValue=282, I changed both to 0, now it seems to be working - stream patcher is ticked on BBC HD ;) . Unfortunately the bug is still there if you switch from BBC HD to an aspect ratio patched channel- can this be fixed? If it's too hard don't bother, I can just go to another channel first.

A hint for aspect ratio patching: For me it was quite easy to export all to-be-patched channels to one ini file because I've implemented multi-selection in the DVBViewer GE channellist lately (not yet released). In DVBViewer Pro I would do it in the following way:



1) Select one of the channels in the DVBViewer Pro channel editor and give it a new (not yet existing) category name. Click Apply. DVBViewer will create the new category.



2) Drag & drop the other channels into this category.



3) Select the category and export it (resp. all contained channels) as INI. After that, click the "Reload channellist" tool button to return to the previous state.



4) Add



[Patch]

PatchType=16:9



in the INI export, rename it to .patch, store it in the configuration folder.

Thanks for the tip, but I can't see how to create a category in the channel list editor- I can only see 'set channelgroup' (A-H)?

Share this post


Link to post
Griga
I think it is the DiseqC

DiSEqC is not used for comparison. I've tested it with different DiSEqC values in the patch file, makes no difference here. It always works. Can you reproduce it with the previous values?



Unfortunately the bug is still there if you switch from BBC HD to an aspect ratio patched channel- can this be fixed?

Must be fixed in DVBViewer Pro.



Thanks for the tip, but I can't see how to create a category in the channel list editor-

The channel editor should have a button for creating a new category ;) Change the category name of a channel on the right side of the editor (where all the channel data can be edited) and click Apply. Quite far away from being obvious...

Share this post


Link to post
dvbrewer
DiSEqC is not used for comparison. I've tested it with different DiSEqC values in the patch file, makes no difference here. It always works. Can you reproduce it with the previous values?

You are right the problem is not the DiSEqC settings, but there is still a problem, the patcher only works if BBC HD is the first channel to display on opening DVBViewer, if I then change channel and change back to BBC HD the patcher is not ticked, and if any other channel is the first to open and I then switch to BBC HD it is not ticked ;) .



The channel editor should have a button for creating a new category ;) Change the category name of a channel on the right side of the editor (where all the channel data can be edited) and click Apply. Quite far away from being obvious...

OK I got it :bye:.



I guess there will always be new (smaller) channels that have this problem for a while after launching, hopefully they will all eventually get fixed (unless they go bust :) ).....

I am a prophet, Simply Movies just closed ;).

Edited by dvbrewer

Share this post


Link to post
Griga
You are right the problem is not the DiSEqC settings, but there is still a problem, the patcher only works if BBC HD is the first channel to display on opening DVBViewer,

Confirmed. It's this problem again:



It doesn't work if channel switching implies rebuilding the filter graph

Stupid me. I should have known... additionally the plugin doesn't work in DVBViewer Pro after switching from file playback to TV/radio. It always requires tuning the channel twice (also applies to the BBC HD issue). So we have to wait for the next DVBViewer Pro update. It's already fixed in an internal version.



Simply Movies just closed

Doesn't matter. I've just found two other channels that need a 16:9 patch: Babestation and Babeworld.tv on 11343 V. ;)



British broadcasters really seem to have difficulties to conform to international standards. British users should spam them with mails and let them know that they are not broadcasting on DevilMayCare Sat, but are expected to do their job well.

Share this post


Link to post
Rob100
British broadcasters really seem to have difficulties to conform to international standards. British users should spam them with mails and let them know that they are not broadcasting on DevilMayCare Sat, but are expected to do their job well.



Any chance of adding the option for patching "video_full_range_flag" so I can fix my ITV HD recordings on the fly and save running through TSDoctor afterwards. This would also fix streamed ITV HD to PS3 which at the moment looks washed out. It really is a poor show that neither BBC or ITV can broadcast conforming to international standards.

Edited by Rob100

Share this post


Link to post
dvbrewer
Confirmed. It's this problem again....So we have to wait for the next DVBViewer Pro update. It's already fixed in an internal version.

OK, look forward to the update :).

Doesn't matter. I've just found two other channels that need a 16:9 patch: Babestation and Babeworld.tv on 11343 V. ;)

Yes a few of the slapper on a sofa channels (as we call it in the UK ;)) seem to have that problem- maybe they want us to think they are thinner :bye:

British broadcasters really seem to have difficulties to conform to international standards. British users should spam them with mails and let them know that they are not broadcasting on DevilMayCare Sat, but are expected to do their job well.

It mostly seems to be channels on Eurobird 1, but maybe it is just because these are cheaper bandwidth than Astra 28.2?

Share this post


Link to post
Griga
Any chance of adding the option for patching "video_full_range_flag" so I can fix my ITV HD recordings on the fly

Very difficult, sorry. H.264 video headers are compressed and must be unpacked before you can change them, the flag is not located at a fixed offset, it is part of a data section that may or may not be present... after I had learned how to read (not yet to write!) H.264 sequence parameter sets I knew why H.264 software decoders are so damned slow. This bitstream format is designed for dedicated DSPs, not for Intel CPUs.



BTW: Aspect ratio patching only works for MPEG2, not for H.264. Now you know why ;)

Share this post


Link to post
dvbrewer
It doesn't work if channel switching implies rebuilding the filter graph



... additionally the plugin doesn't work in DVBViewer Pro after switching from file playback to TV/radio. It always requires tuning the channel twice (also applies to the BBC HD issue). So we have to wait for the next DVBViewer Pro update. It's already fixed in an internal version.

Confirmed that it will also not work tuning from a radio channel. Any idea when the next DVBViewer Pro update will be :) ?

Share this post


Link to post
Rob100
Very difficult, sorry. H.264 video headers are compressed and must be unpacked before you can change them, the flag is not located at a fixed offset, it is part of a data section that may or may not be present... after I had learned how to read (not yet to write!) H.264 sequence parameter sets I knew why H.264 software decoders are so damned slow. This bitstream format is designed for dedicated DSPs, not for Intel CPUs.



BTW: Aspect ratio patching only works for MPEG2, not for H.264. Now you know why :)



Okay, thanks for the explanation.

Share this post


Link to post
dvbrewer
Confirmed that it will also not work tuning from a radio channel. Any idea when the next DVBViewer Pro update will be :bye: ?

The streampatcher now works correctly with the new 4.2.0.1 Beta- thanks Lars and Griga for your work!

Share this post


Link to post
wlx

I'm using DVBViewer in a 4:3 main monitor.



I see the theatre view (full screen) in a secondary monitor which is 16:9.



I think could be useful to set one aspect ratio option more in the configuration menu. You can select 4:3, 14:9, 16:9, 2,35:1 and Auto/nothing. When the signal from sat is in 16:9, I see black horizontal bars in my main 4:3 monitor, so the 16:9 monitor shows video horizontally extended.



I think, if DVBViewer includes an option to select aspect ratio 1:1 in the configuration /aspect ratio menu I could see full 16:9 video in my secondary monitor.



It could be simple to set up, and it could let to use all the surface without distorsion video in a 16:9 monitor.



:)

Share this post


Link to post
dvbrewer
The streampatcher now works correctly with the new 4.2.0.1 Beta- thanks Lars and Griga for your work!

Streampatcher no longer seems to work with 4.2.1.0 or the latest BETA- the plugin will show as ticked on the correct channels and wil show 16:9 flag but it will just have black bars either side and not stretch the image?

Edited by dvbrewer

Share this post


Link to post
dvbrewer
Streampatcher no longer seems to work with 4.2.1.0 or the latest BETA- the plugin will show as ticked on the correct channels and wil show 16:9 flag but it will just have black bars either side and not stretch the image?

Sorry looks like it is working in the BETA if I select custom renderer (this is on W7) ;) .

Share this post


Link to post
remlap

Does this plugin still work? I tried a few weeks ago with Open Access 3 that broadcasts in 16:9 within 4:3.



I've attached ini file for the channel just incase.



Open_Access_3.ini

Open_Access_3.ini

Edited by remlap

Share this post


Link to post
dvbrewer
Does this plugin still work? I tried a few weeks ago with Open Access 3 that broadcasts in 16:9 within 4:3.



I've attached ini file for the channel just incase.



Open_Access_3.ini

Yes it does work, you need to change the .ini file to a .patch file, and put this line at the top:



[Patch]

PatchType=16:9



then put in the DVBViewer config folder, and put the Streampatcher.dll in the DVBViewer program files/program data plugins folder :( .

Edited by dvbrewer

Share this post


Link to post
dvbrewer
E.g. the wrong BBC HD AC3 PES start codes.

Apparently this has been fixed since an encoder change in August 2009, can you confirm that this part of the patch is no longer needed (presumably the BBC HD fixer is now redundant also)?



EDIT- found the answer (presuming it still applies):



Currently the BBC HD AC3 stream ID is correct (0xBD). Let's see if they stick to it... it had already been corrected in the past, but then they relapsed
Edited by dvbrewer

Share this post


Link to post
This thread is quite old. Please consider starting a new thread rather than reviving this one.

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.


×
×
  • Create New...
