Radioman

Indication of HbbTV - but no HbbTV?

Recommended Posts

Radioman

If I tune into Rai News 24 @Astra 11288V I get the "red indication" that there is a HbbTV content.

But when I enable HbbTV there is no HbbTV. Same thing with SRF Info @ HB 13E. Several other channels are OK with HbbTV.

This channel (SRF Info) worked previously with HbbTV. I don't know if the terrestrial channel SvT broadcast HbbTV or not. But I get the same indication on this channel.

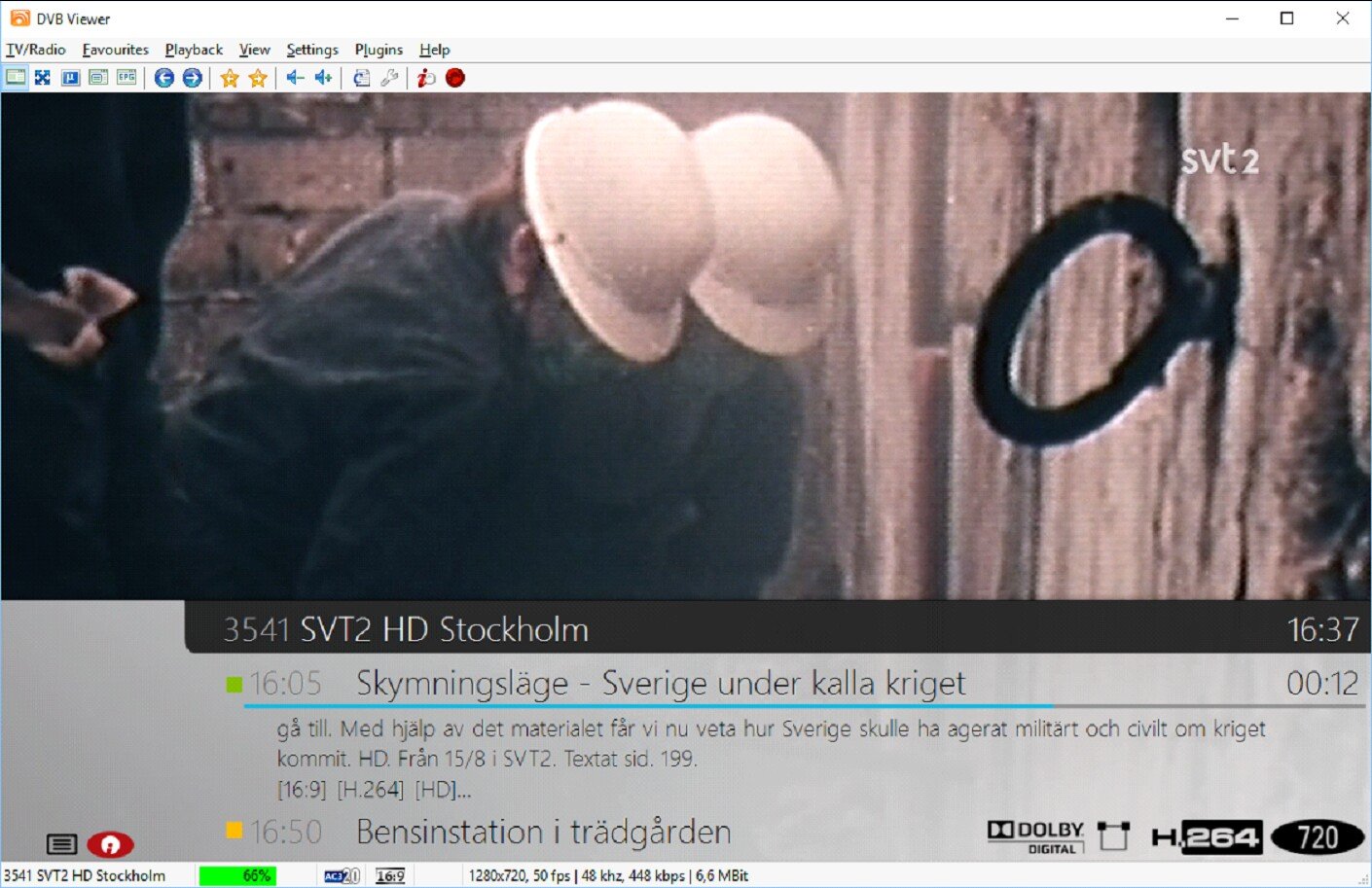

See picture:




Share this post


Link to post
hackbart

You should start the application in debug mode. In this case you see what went wrong while pressing the red button.

Share this post


Link to post
Radioman

I tried debug mode, with same result. But where can I 'see' what went wrong?

I noticed the following:
All German channels (ARD, ZDF an so on) works fine with HbbTV. Also tve Internacional works fine.
If I tune to SRF info there is no result if I press F5 in HbbTV mode. If I then tune to ZDF the HbbTv does not appear. If I restart DVBViwer the HbbTV works normal on ZDF.

Share this post


Link to post
hackbart

In the Debug mode you will see more information in the DVBViewer.log file. This is located in your DVBViewer settings folder. There is for example the url of the HbbTV content listed.

The problem you mention might be caused by an exception raised by the web browser. Certain hbbtv providers need a certificate in order to open their page.

Share this post


Link to post
Radioman

Tnx! This is a part from the log:
TAITParser           SRFinfo_StartApp http://hbbtv.swisstxt.ch/V3/index.html?customer=srf&channel=srfinfo (1)

Hbbtv.Disconnect     Guid: 262146
Hbbtv.ReleaseConnection Typ: 4
Hbbtv.Disconnect     Guid: 196608
Hbbtv.ReleaseConnection Typ: 3

TAITParser           SRFinfo_StartApp http://hbbtv.swisstxt.ch/V3/index.html?customer=srf&channel=srfinfo (1)
Hbbtv.LoadInBrowser  Set transparent Colorkey
Hbbtv.StartTV        IsTV: 1 Name: SRF info HD (AC3)

Hbbtv.LoadInBrowser  Set transparent Colorkey
 Hbbtv.LoadResource   http://hbbtv.swisstxt.ch/V3/index.html?customer=srf&channel=srfinfo
 Hbbtv.Process        UpdateTimer
 Hbbtv.LoadResource   http://hbbtv.swisstxt.ch/V3/app.html?customer=srf&channel=srfinfo
 Hbbtv.LoadResource   http://hbbtv.swisstxt.ch/V3/app.3bea21.min.css
 Hbbtv.LoadResource   http://hbbtv.swisstxt.ch/V3/core/core.3bea21.min.js
 Hbbtv.Connect        Guid: 262146
 Hbbtv.DoConnection   Typ: 4; Succeeded: 1
 Hbbtv.DoConnection   Update Colorkey and fire Timer
 Hbbtv.Broadcast.WindowChanged x: 0, y: 0, w: 1280,h: 720
 Hbbtv.DisplayVideoAt 0 0 1280 720
 Hbbtv.Connect        Guid: 196608
 Hbbtv.DoConnection   Typ: 3; Succeeded: 1
 Hbbtv.DoConnection   Update Colorkey and fire Timer

x

x

 Hbbtv.DoConnection   Update Colorkey and fire Timer
 Hbbtv.Disconnect     Guid: 262146
 Hbbtv.ReleaseConnection Typ: 4
 TfrmMain             Release          TBS 6902 DVBS/S2 Tuner 1 (2)
 TfrmMain             Free             TBS 6902 DVBS/S2 Tuner 1 (2)
 TfrmMain             Freed            TBS 6902 DVBS/S2 Tuner 1 (2)
 TfrmMain             hamDeleted       TBS 6902 DVBS/S2 Tuner 1 (2)
 TfrmMain             End App          before OSD terminate
 Hbbtv.ClearCache     C:\ProgramData\CMUV\DVBViewer\Cache
 End App              -----------------------------------

Share this post


Link to post
hackbart

Thanks, if you open the App you receive an error message:



Uncaught TypeError: Cannot assign to read only property '__esModule' of #<Object>



Not sure if i can find a "work" around, but SRF should be fix this, since the issue will appear on almost every chrome based browser.

Share this post


Link to post
Radioman

One more log:

19.08.18 19:11:13.031 Hbbtv.StartTV        IsTV: 1 Name: SVT1 HD Stockholm
19.08.18 19:11:14.530 Hbbtv.StartTV        IsTV: 1 Name: SVT1 HD Stockholm
19.08.18 19:11:17.092 TDVBSourceRenderer   RealignWindow (VP) (0,0,1126,633)
19.08.18 19:11:17.308 TAITParser           SVT User Agent check http://hbbtv.play.svt.se/device_infos/index.xhtml (2)
19.08.18 19:11:17.740 TAITParser           SVT User Agent check http://hbbtv.play.svt.se/device_infos/index.xhtml (2)
19.08.18 19:11:17.741 Hbbtv.LoadInBrowser  Set transparent Colorkey
19.08.18 19:11:29.741 Hbbtv.LoadInBrowser  Set transparent Colorkey
19.08.18 19:11:30.366 Hbbtv.Process        UpdateTimer
19.08.18 19:11:30.375 Hbbtv.LoadResource   http://hbbtv.play.svt.se/device_infos/index.xhtml
19.08.18 19:11:31.590 Download Handler     Probably redirected, so use ICefWebUrlRequest for: application/vnd.hbbtv.xhtml+xml index.xhtml
19.08.18 19:11:31.949 Hbbtv.LoadResource   http://hbbtv.play.svt.se/device_infos/js/utils.js
19.08.18 19:11:31.950 Hbbtv.LoadResource   http://hbbtv.play.svt.se/device_infos/js/hbbtv.js
19.08.18 19:11:32.035 Hbbtv.Process        UpdateTimer
x
x
19.08.18 19:11:53.702 Hbbtv.Process        UpdateTimer
19.08.18 19:11:54.329 Hbbtv.LoadInBrowser  Set transparent Colorkey
19.08.18 19:11:54.366 TDVBSourceRenderer   RealignWindow (VP) (0,0,1126,633)
19.08.18 19:11:54.400 Hbbtv.DisplayVideoAt 0 0 1280 720
19.08.18 19:11:54.400 Hbbtv.DisplayVideoAt failed.
19.08.18 19:11:54.553 TfrmMain             Release          ASTROMETA DTV Filter (1)
19.08.18 19:11:54.553 TfrmMain             Free             ASTROMETA DTV Filter (1)
19.08.18 19:11:54.760 TfrmMain             Freed            ASTROMETA DTV Filter (1)
19.08.18 19:11:54.760 TfrmMain             hamDeleted       ASTROMETA DTV Filter (1)
19.08.18 19:11:54.800 TfrmMain             End App          before OSD terminate
19.08.18 19:11:54.843 Hbbtv.ClearCache     C:\ProgramData\CMUV\DVBViewer\Cache
19.08.18 19:11:54.865 End App              -----------------------------------

----------------

Lets hope you´ll find a work around. Thanks in advance.

Share this post


Link to post
hackbart

Hmm are you sure that SVT1 does have HbbTV content?



I debugged their website and the complete hbbtv app looks like this:



// Config
var LOG_URL = "http://hbbtv.play.svt.se/device_infos/log";
var XHR_DONE = 4;


window.onload = function onload() {
  // add listener
  // document.addEventListener("keydown", Handlekey, false);

  if ( SVTLogged.isLogged() ) {
    return;
  }

  /// ApplicationManager
  var appmgr = document.getElementById('appmgr');

  if ( !appmgr || !appmgr.getOwnerApplication ) {
    return;
  }

  /// Configuration
  var appcfg = document.getElementById('oipfcfg');

  if ( !appcfg || !appcfg.configuration ) {
    return;
  }

  /// Activation
  try {
    var app = appmgr.getOwnerApplication(document);

    if (!app) {
      return;
    }
  } catch (e) {
    return;
  }

  logHbbTV();
};


function logHbbTV() {
  var xhr = new XMLHttpRequest();
  xhr.open("GET", LOG_URL + '?survey=ping');
  xhr.onreadystatechange = function() {
    if(xhr.readyState === XHR_DONE && xhr.status === 200) {
      SVTLogged.setLogged();
    }
  };
  xhr.send();
}

This is nothing more than requesting the application manager (which is an hbbtv object) and to log the device information. I assume they try to collect the user agents in order to figure out which of them should be allowed in order to get their context in the near future.

Share this post


Link to post
hackbart

What you might check is the AIT information in the log file. You should also get different Links which are stored in this table.

Share this post


Link to post
HaraldL
vor 7 Minuten schrieb hackbart:

I assume they try to collect the user agents in order to figure out which of them should be allowed in order to get their context in the near future.



Or silently tracking data about current viewers (count etc.). If I remember correctly even ARTE did this at first when HbbTV started, a "ping" to the server every few seconds, but stopped it after protest.

Share this post


Link to post
Radioman
21 hours ago, hackbart said:

Hmm are you sure that SVT1 does have HbbTV content?

No, as I wrote in the top post, I don't know if there is any HbbTV content. I just noticed the indication of HbbTV on these channels (SvT1 and SvT2). Which were not present 'before'.

I don't have the skill to debug the website.

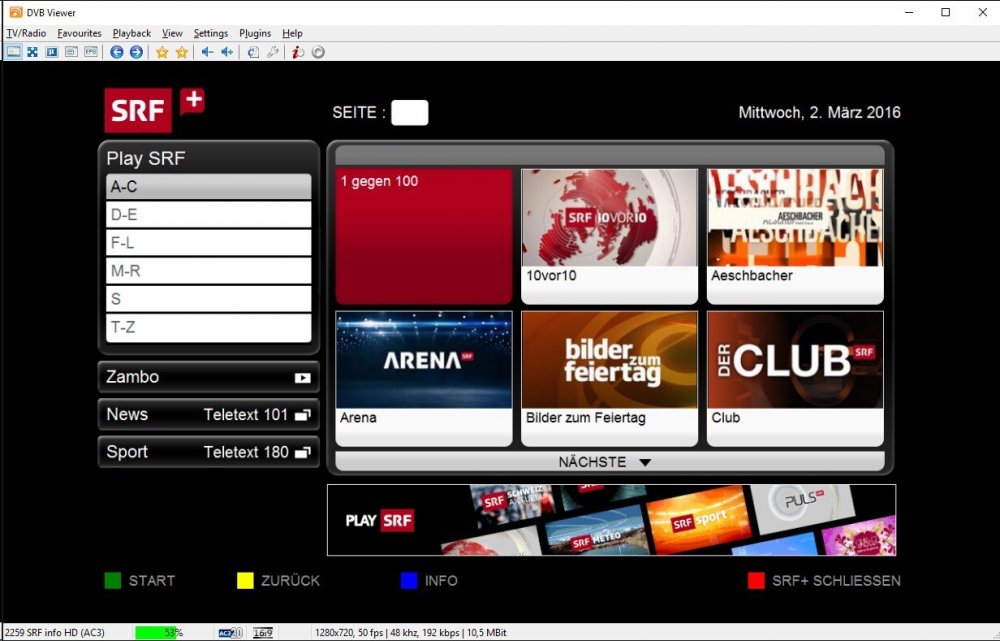

But I do know that SRF info had HbbTV content, which worked fine:




Share this post


Link to post
hackbart

Yes I know ich the SRF page, resp. I remember it. As i said SRF Info raises an exception in the javascript. Not sure if it is a problem of the WebKit version i use. I honestly did not found time to patch it around, but there is a fully fledged JavaScript debugger inside the DVBViewer which can be used to find issues like this and the HbbTV.xml to inject a patch. I will try to solve this SRF Info problem  some day. :wub:

Share this post


Link to post
Franz Sidler

Sehr geehrter Herr Hackbart



Ich habe vor wenigen Tagen den DVBViewer mit dem Plugin HbbTV gekauft um auf die HbbTV Inhalte von SRF auch am PC zugreifen zu können.

Am Fernseher funktioniert HbbTV mit dem eingebauten SAT-Empfänger fehlerfrei.

Mit der Sat-Karte von Digitaldevice und der SW DVBViewer mit HbbTV Plugin erhalte ich nur auf anderen Sendern Zugriff auf HbbTV (z.B. ARD)

Die SRF Programme werden im DVBViewer korrekt wiedergegeben.



Da ich in der Schweiz wohne, ist für mich der Empfang von HbbTV von SRF sehr wichtig.

Haben Sie hierzu neue Erkenntnisse um HbbTV auch für SRF zu empfangen?

Danke



Share this post


Link to post
Radioman
On 8/22/2018 at 9:34 PM, hackbart said:

I will try to solve this SRF Info problem  some day

Is there any progress on this issue?

 My German is not 'up to date', but I believe the next post is from a user in Switzerland and that his HbbTV works fine on a standard TV-set.

 I can confirm that HbbTV works just fine on my 4k-TV from SRF and RSI and RTS, but not on on DVBViewer.

Share this post


Link to post
Franz Sidler

Gibt es zum HBBTV zum Empfang der Sender vom SRF noch keine Lösung?

Danke

Share this post


Link to post
