Stab Rotor HH100 control by DVBViewer, how?

[Rob66]

I am using DVB Pro V5.4.1.0 (Beta), SKY S950CI PCIe Card, Working fine with Duo LNB using DiSEqC AA and BB..

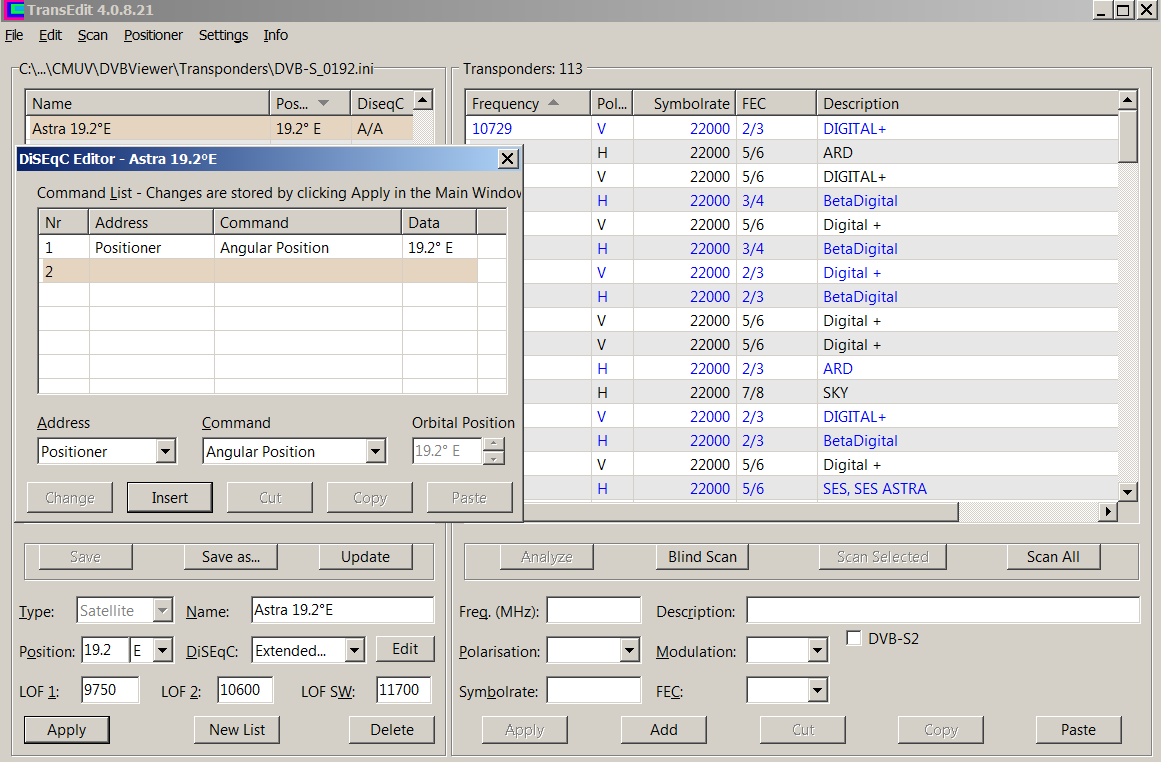

Now I replace the LNB by a single one together with a Stab rotor HH-100 DVBViewer set on Angular Positioner, see attachments

Result is That the Rotor is not communicate with my DVBViewer.

Rotor manual referring to "USALS" Commands.



I don't no how to solve this problem.



Can somebody help me out?



Thx Robert

support.zip

Edited June 26, 2015 by Rob66

[Tjod]

You need TransEdit for this (TransEdit.exe in the DVBViewer Folder).

http://www.DVBViewer.com/griga/TransEdit%20E/DiSEqC.html#Selection

http://www.DVBViewer.com/griga/TransEdit%20D/Content.html

[Rob66]

My Rotor is working in Transedit (Manual). I update the 192.ini file and try it in dvb vierwer. Still not working.. In the position console is it working manual. I try to repeat this in DVBViewer. Not working. I read article



http://www.DVBViewer.tv/forum/topic/52528-tbs-transedit-stab-hh90-usals-doesnt-work/

Then I change DiSEqCCount.x=1 to 2 3 not working no success...



QST remain in the DVBViewer I cannot adjust the rotor..



Hope there is a solution for it...



Thx Rob





[Derrick]

Did you use angular position or extended diseqc in transedit?

[Rob66]

>Did you use angular position or extended diseqc in transedit?

I try both. Now I am using Extende mode incl. delay to fix the problem.

Now it running with DVBViewer, so I think I solve the problem..

I repeat 3 time the command send to the rotor



Thx Robert
